Bentonite, a clay mineral primarily composed of montmorillonite, is widely used in the oil and gas drilling industry as a key component of water-based drilling muds. Its unique properties—such as high swelling capacity, thixotropy, and viscosity control—make it indispensable for stabilizing boreholes, carrying cuttings, and lubricating drill bits. In Afghanistan, where exploration for hydrocarbons and minerals is gaining momentum, the demand for high-quality bentonite powder with precise particle size distribution is increasing. One critical specification for drilling-grade bentonite is a fineness of 800 mesh (approximately 15 microns), which ensures optimal rheological behavior and filtration control. Achieving such a fine and consistent grind requires advanced grinding technology.
The processing of bentonite for drilling mud involves several stages: crushing, drying, grinding, and classification. For the grinding stage, the material must be reduced from a feed size of up to 30–50 mm to a final product of 800 mesh (d97 ≤ 15 μm). This ultra-fine grinding presents challenges in terms of energy consumption, wear resistance, and powder classification efficiency. Traditional mills like Raymond mills or ball mills may struggle to consistently produce 800 mesh material at an industrial scale. Therefore, a dedicated ultra-fine grinding mill capable of handling soft, hygroscopic minerals like bentonite is necessary.
Afghanistan’s climate, with its arid conditions and variable power supply, also demands robust, low-maintenance equipment that can operate reliably. Additionally, the mill must be able to process bentonite with moisture content up to 5–6% (after drying) without clogging or excessive heat generation. Shanghai Zenith Machinery Co., Ltd., with decades of experience in ore grinding, offers a range of mill solutions tailored to these exact needs.
To meet the stringent 800 mesh requirement, the grinding mill must combine high-speed impact, attrition, and air classification in a closed circuit. Among Zenith’s product portfolio, two machines stand out as ideal candidates: the XZM Ultrafine Grinding Mill and the LUM Ultrafine Vertical Mill. Both are designed for superfine powder production with fineness ranging from 325 to 2500 mesh (5–44 microns). Their technical parameters are perfectly suited for bentonite.

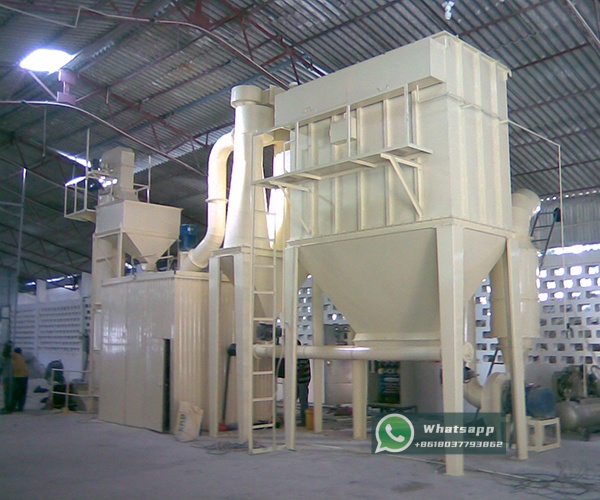

The XZM series is a classic choice for ultra-fine grinding of non-metallic minerals. It features a multi-roller swing mechanism and a high-efficiency classifier, enabling stable production of 800 mesh bentonite powder. The mill’s working diameter of Φ800 mm (model XZM221) provides a capacity of 500–4500 kg/h, which is ideal for small to medium-scale operations common in Afghanistan. Its main motor is 75 kW, and the overall footprint is compact, making it suitable for modular setup.
| Parameter | Value |
|---|---|
| Working diameter (mm) | Φ800 |
| Max feed size (mm) | ≤20 |
| Final size (mesh) | 325–2500 (adjustable) |
| Output (kg/h) at 800 mesh | 800–2500 (depending on material) |
| Main motor power (kW) | 75 |
| Classifier motor (kW) | 15 |
| Overall weight (t) | 16 |

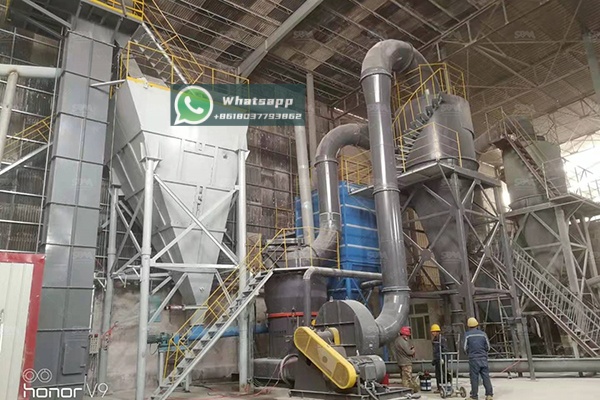

For higher capacity and enhanced energy efficiency, the LUM series is an excellent alternative. The LUM1525 model integrates grinding, classification, and drying in a single vertical structure, reducing floor space and auxiliary equipment. It uses a roller and table principle with hydraulic pressure, ensuring low vibration and long service life. The product fineness is adjustable between 5–30 microns (D97), easily covering 800 mesh. With a main motor power of 220–250 kW, it can produce 1.6–11.5 t/h, making it suitable for large-scale commercial bentonite plants.
| Parameter | Value |
|---|---|
| Main machine power (kW) | 220–250 |
| Capacity (t/h) at 800 mesh | 1.6–6.0 (depending on feed size) |
| Size distribution D97 (μm) | 5–30 |
| Max feed size (mm) | ≤20 |
| Voltage (V) | 380 / 440 / optional |
| Weight (t) | approx. 35 |
Shanghai Zenith Machinery Co., Ltd. has a proven track record in ultra-fine grinding technology for over 30 years. Our equipment is engineered to handle high-moisture, sticky materials like bentonite while delivering consistent 800 mesh fineness. Key advantages include:
Moreover, our after-sales service includes on-site commissioning, training, and spare parts support. For a typical 800 mesh bentonite grinding line, a combination of a jaw crusher, bucket elevator, electromagnetic feeder, and the chosen mill can process 2–5 tons per hour with a final product that meets API 13A specifications for drilling fluids.
Afghanistan’s growing drilling industry demands high-quality bentonite powder ground to 800 mesh. Shanghai Zenith’s XZM Ultrafine Grinding Mill and LUM Ultrafine Vertical Mill are the optimal solutions, combining proven technology, robust construction, and tailored performance. With their ability to deliver consistent ultra-fine product, low operational costs, and adaptability to local conditions, these mills empower Afghan bentonite processors to produce drilling mud additives that meet international standards. For any bentonite grinding project in Afghanistan, Zenith provides the right equipment and expertise to achieve success.
Contact Shanghai Zenith to discuss your specific capacity and fineness requirements. Our engineers will help you design the most efficient grinding circuit for your bentonite operation.
