Iraq’s construction industry has witnessed substantial development in recent years, driven by infrastructure rebuilding and rapid urbanization. One of the key components of this development is the tile production industry, which relies heavily on high-quality cement clinker powder. To achieve tiles with superior surface finishing, uniformity, and strength, it is essential to optimize the grinding of cement clinker into ultra-fine powder, typically at a fineness of around 200 mesh (approximately 75 μm). Among global equipment suppliers, Shanghai Zenith Machinery Co., Ltd. has established itself as a leader in grinding technology with a comprehensive range of mills designed for high efficiency and precision.
This article explores the technical considerations and operational advantages of using cement clinker grinding mills for tile production in Iraq, emphasizing the application of Zenith’s advanced equipment such as the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill.
Iraq’s demand for construction materials, including cement and ceramic tiles, is expanding due to reconstruction programs and housing projects. Raw materials such as clinker must be processed into fine powders suitable for use as binders and glazes in tile manufacturing. Achieving consistent and fine grinding is crucial because it determines not only the mechanical performance of the tiles but also their appearance and water absorption rate.
To meet local market standards and ensure high throughput with minimal energy consumption, industrial tile manufacturers in Iraq require reliable grinding systems that can produce stable output at a fineness level of 200 mesh. Given the technical demands of this application, energy-efficient grinding mills from Shanghai Zenith Machinery Co., Ltd. provide a robust solution.
Cement clinker is a nodular material produced during the kiln stage of cement production. It is composed mainly of calcium silicates and aluminates. To transform clinker into fine powder suitable for tile applications, several parameters must be carefully managed:
Shanghai Zenith Machinery’s advanced grinding mills integrate these considerations into their designs, offering not only high precision but also stability and cost efficiency.

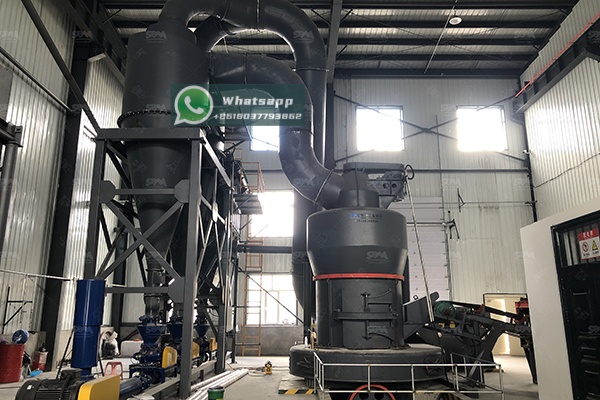

The MTW Trapezium Grinding Mill is a premier choice for cement clinker and related raw materials. It is equipped with a bevel gear system, efficient powder separator, and arc blade design, all of which contribute to high productivity and consistent fineness. For Iraqi tile producers targeting 200 mesh product fineness, this equipment provides outstanding performance with reduced production costs.
Below is a summary of the technical specifications of the MTW series:
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW110 | <30 | 1.6–0.045 | 3–9 | 55 | 55 |
| MTW138Z | <35 | 1.6–0.045 | 6–17 | 90 | 110 |
| MTW175G | <40 | 1.6–0.045 | 9.5–25 | 160 | 200 |
The MTW series is particularly suitable for processing clinker to a fine powder level while maintaining structural integrity of the feed and minimizing operational vibration. Its advanced central control system allows operators to adjust parameters quickly for desired mesh grades.

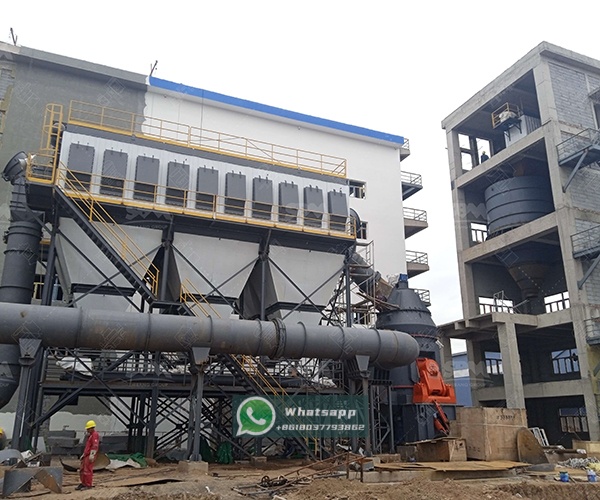

For large-scale tile production operations, the LM Vertical Grinding Mill provides an integrated grinding solution. The system combines crushing, drying, grinding, classifying, and conveying functions. In regions like Iraq, where the environment may feature variable humidity and temperature, its built-in drying capability ensures stable operation.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10–28 | 170–40 | <38 | 200 |
| LM190K | 1900 | 23–68 | 170–40 | <45 | 500 |
| LM280K | 2800 | 50–170 | 170–45 | <50 | 1250 |
Compared with traditional ball mills, LM Vertical Grinding Mills reduce energy consumption by up to 30%. Its compact design and enclosed system make it ideal for environmentally compliant tile production facilities. The high precision of particle classification ensures each batch meets the 200-mesh requirement for ceramic tile glaze or substrate applications.
When selecting the grinding system for clinker treatment in Iraq, several benefits of utilizing Shanghai Zenith Machinery’s mills become evident:
Modern cement and tile production requires automation to ensure efficiency and consistency. Zenith’s grinding equipment integrates PLC control systems, enabling automatic adjustment of feed rate, air pressure, and separator speed. In addition, the automation improves product consistency while reducing manpower requirements — a significant advantage for Iraqi factories aiming to enhance productivity with limited technical staff.
Energy represents one of the largest operating costs in cement and clinker grinding. By adopting energy-efficient Zenith mills, manufacturers can achieve up to 25% cost savings per ton of clinker processed compared with conventional mills. The excellent durability of Zenith’s components also results in longer equipment lifespan, reducing the total cost of ownership.
Furthermore, Zenith provides local service support, ensuring timely spare parts delivery and remote technical assistance. This after-sales network is particularly valuable in emerging markets such as Iraq, where minimizing downtime is critical.
The grinding of cement clinker to 200 mesh for tile production is a precision-driven process that demands advanced technology and energy-efficient machinery. Shanghai Zenith Machinery Co., Ltd. offers tailor-made solutions through its MTW Trapezium Grinding Mill and LM Vertical Grinding Mill series, which deliver outstanding grinding performance, high efficiency, and environmental protection. Their adaptable configurations and control systems make them the best options for industrial tile production facilities in Iraq that seek quality, consistency, and long-term profitability.
By choosing Zenith’s cutting-edge grinding mills, Iraqi tile manufacturers can achieve higher productivity while ensuring superior product quality — contributing to the broader growth and modernization of Iraq’s construction materials industry.
