The shotcrete and sprayed concrete market has experienced significant growth in recent years, driven by increasing infrastructure development, tunneling projects, and rehabilitation of existing structures. The quality and performance of these specialized concrete applications depend heavily on the precise formulation and fineness of the raw materials used. Proper grinding of cementitious materials and additives is crucial for achieving the optimal particle size distribution that ensures excellent pumpability, adhesion, and final strength characteristics.
In shotcrete applications, particle size distribution directly impacts several critical performance parameters. Finer particles contribute to better hydration, improved cohesion during application, reduced rebound, and enhanced final compressive strength. The grinding process must be carefully controlled to produce materials with consistent fineness and particle morphology that meet the stringent requirements of modern shotcrete technology.
Traditional grinding equipment often falls short in meeting the precise requirements of shotcrete production. Inconsistent particle size, excessive energy consumption, and maintenance challenges can compromise both product quality and operational efficiency. This is where advanced grinding technologies from specialized manufacturers make a significant difference.
Shanghai Zenith Machinery Co., Ltd., as an excellent manufacturer of ore grinding equipment in China, has made substantial achievements in the field of ultra-fine powder grinding. With specialization in research, development, and production of industrial powder grinding equipment, Zenith offers solutions specifically tailored to the demanding requirements of the construction materials industry, including shotcrete and sprayed concrete production.

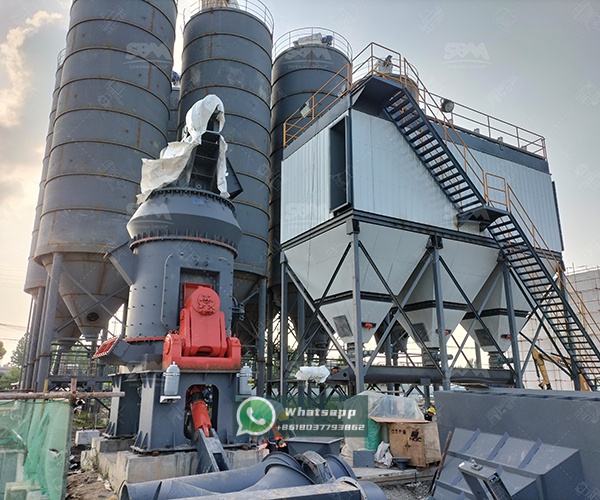

For shotcrete applications requiring exceptionally fine and consistent materials, the LUM Ultrafine Vertical Mill represents the pinnacle of grinding technology. This advanced system integrates grinding, drying, classifying, and transportation functions while occupying minimal space. The intelligent control system ensures precise operation and easier maintenance, making it ideal for continuous shotcrete material production.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM series is particularly valuable for producing micro-silica and other ultra-fine additives that significantly enhance shotcrete performance. The ability to achieve consistent particle sizes between 5-30 microns ensures optimal packing density and reduced permeability in the final concrete matrix.

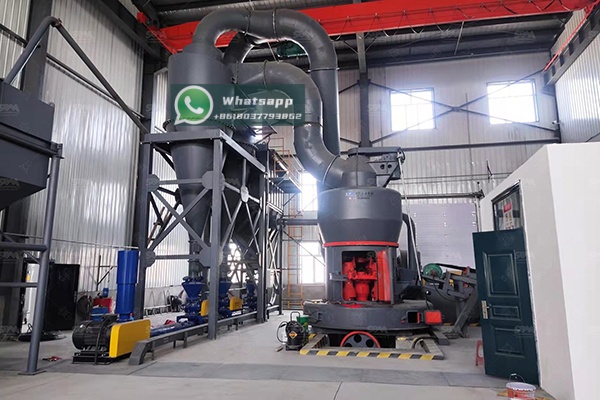

For general shotcrete binder production, the MTW Trapezium Grinding Mill offers an excellent balance of efficiency, reliability, and operational economy. With its multiple patents, compact structure, and eco-friendly design, this mill processes materials with maximum input size of 50mm and produces final products as fine as 0.038mm.
| Model | Max. Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) |
|---|---|---|---|---|
| MTW110 | <30 | 1.6-0.045 | 3-9 | 55 |
| MTW138Z | <35 | 1.6-0.045 | 6-17 | 90 |
| MTW175G | <40 | 1.6-0.045 | 9.5-25 | 160 |
| MTW215G | <50 | 1.6-0.045 | 15-45 | 280 |
The MTW series is particularly suitable for grinding Portland cement, slag cement, and other hydraulic binders used in shotcrete formulations. Its trapezium grinding mechanism ensures uniform particle distribution with minimal over-grinding, resulting in optimal rheological properties for spraying applications.
Zenith’s grinding solutions offer several distinct advantages for shotcrete manufacturers:
Different shotcrete applications require specific material characteristics that can be achieved through proper grinding technology selection:
For dry mix applications, the grinding process must produce materials with excellent flow characteristics and minimal moisture content. The LM Vertical Grinding Mill series, with integrated drying capabilities, is particularly well-suited for these requirements.
Wet mix shotcrete demands precise control over particle morphology to ensure stable suspension in the liquid phase. The Ball Mill series from Zenith provides the necessary grinding action to create spherical particles that enhance pumpability and reduce segregation.
A major tunneling contractor recently implemented Zenith’s LUM Ultrafine Vertical Mill for processing their specialized shotcrete formulations. The results demonstrated significant improvements:
The shotcrete market continues to evolve with increasing demands for higher performance, specialized formulations, and sustainable production methods. Zenith remains at the forefront of grinding technology development, with ongoing research focused on:
The selection of appropriate grinding technology is paramount for success in the competitive shotcrete and sprayed concrete market. Shanghai Zenith Machinery Co., Ltd. offers comprehensive grinding solutions that address the specific challenges of this demanding application. From the ultra-fine capabilities of the LUM series to the robust performance of the MTW trapezium mills, Zenith’s equipment portfolio provides shotcrete producers with the technological edge needed to deliver superior products while maintaining operational efficiency.
By partnering with an experienced manufacturer that understands the unique requirements of construction materials processing, shotcrete producers can optimize their operations, enhance product quality, and position themselves for growth in an increasingly sophisticated market.
