Turkey ranks among the top metal casting producers in Europe and the Middle East. The country’s foundries supply automotive, machinery, construction, and defense industries with high-quality cast parts. A critical component in many casting processes is the molding sand, and kaolin plays a vital role as a binder or additive in foundry sand formulations. To achieve consistent casting quality, the kaolin must be ground to a fine, uniform powder with controlled particle size and low moisture content. This article explores the requirements for a kaolin grinding mill for casting sand in Turkey, specifically focusing on a production capacity of 1-3 tons per hour (tph), and presents a professional solution from Shanghai Zenith Machinery Co., Ltd.
The Turkish foundry sector has grown remarkably over the past decade, with annual production exceeding one million tons. As local manufacturers strive to meet global standards, they are increasingly investing in modern processing equipment that ensures consistency and efficiency. Kaolin, as a key raw material in foundry sand, must be processed with precision. A reliable grinding mill is therefore essential to maintain the quality that modern casting applications demand.
Foundry sand typically consists of silica sand mixed with clay binders. Kaolin is a type of clay that imparts several beneficial properties to the molding sand. It enhances the green strength of the sand mold, allowing it to withstand the pressure of molten metal. Kaolin also improves the refractoriness of the mold, preventing deformation or cracking at high temperatures. In addition, kaolin helps to control the thermal expansion of the sand, reducing the risk of casting defects such as veining and spalling. For these reasons, kaolin is widely used in both green sand molding and no-bake sand processes.
The performance of kaolin in casting sand depends largely on its fineness and particle size distribution. A typical requirement is that the kaolin powder should pass through a 200-mesh screen, meaning that most particles are smaller than 74 microns. Some applications may require even finer grinding down to 400 mesh or more. Therefore, the grinding mill must be capable of producing a consistent product with a narrow particle size range. Moreover, the chemical composition of kaolin, primarily kaolinite (Al2O3·2SiO2·2H2O), remains stable during grinding, provided that the operating temperature is carefully controlled.
When selecting a kaolin grinding mill, several factors must be considered. First, the moisture content of the raw kaolin should ideally be below 6%. High moisture can cause clogging and reduce grinding efficiency. Second, the hardness of kaolin is relatively soft on the Mohs scale, typically around 1-2, which makes it easy to grind. Third, the feed size should be within the mill’s capability; for small to medium production, a maximum feed size of 20-30 mm is acceptable. Fourth, the desired output fineness and capacity determine the mill model.
For a Turkish foundry or a kaolin processing plant that needs 1-3 tph of fine kaolin powder, the equipment must be not only efficient but also economical and reliable. The mill should have a compact design to save floor space, low energy consumption to reduce operating costs, and easy maintenance to minimize downtime. In addition, considering the industrial environment in Turkey, the equipment should be rugged and capable of running continuously. It is also important to choose a manufacturer that offers strong technical support and spare parts availability in the region.
The typical kaolin grinding process starts with crushing the mined kaolin to a smaller size, usually below 20-30 mm. This can be done with a jaw crusher or a hammer crusher. The crushed material is then fed into a grinding mill. In a Raymond mill, the material is ground between a rotating grinding roller and a stationary grinding ring. The ground powder is carried upward by an air stream and passed through a classifier. The classifier controls the fineness of the final product; any oversized particles are returned to the grinding chamber for further reduction. The finished powder is collected in a cyclone or a bag filter.
For casting sand applications, the target fineness is often around 75 microns (200 mesh). At this fineness, the kaolin powder has excellent bonding properties and disperses evenly within the sand mixture. The grinding process must also ensure low moisture content in the final product, because moisture can cause casting defects. Many grinding mills include a hot-air drying system that removes residual moisture during the grinding process, ensuring that the product meets the required specification.
Shanghai Zenith Machinery Co., Ltd. offers a complete range of grinding mills suitable for kaolin processing. For a capacity of 1-3 tph, the YGM8314 Raymond Mill is an ideal choice. This model is part of Zenith’s Raymond Mill series, which is well known for its energy efficiency, high grinding efficiency, and economic profitability. The YGM8314 can produce a final product size ranging from 1.6 mm to 0.045 mm (approximately 10 to 325 mesh), with a capacity of 1.2 to 4.6 t/h. This perfectly covers the required 1-3 tph operation point.
The mill’s three grinding rollers and a grinding ring work on the principle of centrifugal force. Material is fed into the grinding chamber, where it is pressed between the roller and the ring, ground into powder, and then carried by an air stream to a classifier. The classifier ensures that only particles meeting the fineness specification are discharged. Oversized particles are returned for further grinding. This closed-loop system guarantees a high yield and uniform finished product.
In addition, the YGM8314 is equipped with a dust collector and a muffler, making it environmentally friendly. This is increasingly important in Turkey, where environmental regulations are becoming stricter. The mill also features a small footprint, making it easy to install in existing facilities. Its simple structure means that routine maintenance can be performed quickly, reducing downtime and operational costs.
To provide a clear overview, the following table lists the main technical parameters of the YGM8314 Raymond Mill:
| Model | YGM8314 |
|---|---|
| Roller Quantity (pcs) | 3 |
| Max. Feed Size (mm) | 20 |
| Discharging Size (mm) | 1.6-0.045 |
| Capacity (t/h) | 1.2-4.6 |
| Main Motor Power (kW) | 22 |
Note: The exact motor power and other specifications may vary with the configuration. Please contact Shanghai Zenith Machinery for a customized solution.

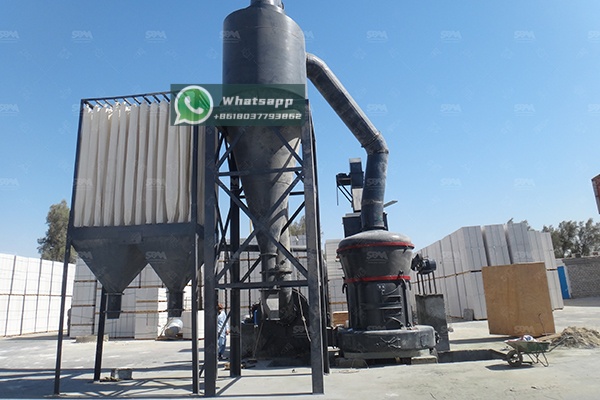

Shanghai Zenith Machinery Co., Ltd. is an excellent manufacturer of ore grinding equipment in China, with great achievements in the field of ultra-fine powder grinding. The company specializes in the research, development, and production of industrial powder grinding equipment and related devices. With years of experience, Zenith has delivered thousands of grinding mills to projects around the world, including many in Turkey.
Zenith’s grinding mills are known for their robust construction, high efficiency, and long service life. The company also provides comprehensive after-sales support, including installation supervision, operator training, and spare parts supply. By choosing a Zenith mill, customers benefit from a reliable production line with minimal downtime. In addition, Zenith offers complete system integration, from raw material feeding to product packaging, ensuring that every stage of the process works harmoniously.

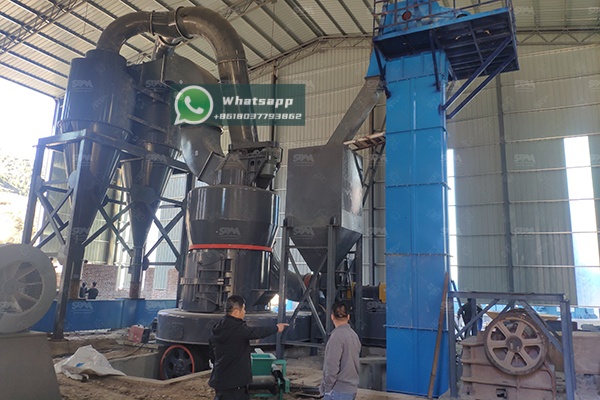

If your production requirements are likely to increase in the future, or if you need to process harder materials, Zenith also offers the MTW Trapezium Grinding Mill series. For instance, the MTW110 mill has a capacity of 3-9 t/h and can accept feed sizes up to 30 mm. It produces a final product of 1.6-0.045 mm, similar to the YGM8314 but with a larger output. The MTW110 is equipped with multiple patents and features a compact structure, long service life, and eco-friendly design. It is an excellent step-up solution when the demand exceeds 3 tph.
The following table shows the key parameters of the MTW110 for comparison:
| Model | MTW110 |
|---|---|
| Max. Feed Size (mm) | <30 |
| Final Size (mm) | 1.6-0.045 |
| Capacity (t/h) | 3-9 |
| Main Motor (kW) | 55 |
| Fan Motor (kW) | 55 |
This alternative gives you flexibility to adjust your production line as market demands evolve. Whether you choose the YGM8314 for its precise capacity or the MTW110 for future growth, Zenith has the right solution for your kaolin grinding business.
For a kaolin grinding application in Turkey with a required capacity of 1-3 tph, the YGM8314 Raymond Mill from Shanghai Zenith Machinery is a proven, economical, and efficient solution. It delivers the precise fineness needed for casting sand, while its compact and environmentally friendly design fits well in modern foundry operations. With additional options such as the MTW110, Zenith can support your growth at any scale. Contact Zenith today to discuss your kaolin grinding needs and get a tailored quotation. Their expert team will help you select the best equipment and optimize your grinding process for maximum profitability.
