limestone grinding mill for casting sand in India 20-30 tph

Introduction: The Critical Role of Limestone Sand in India’s Foundry Industry

India’s rapidly expanding manufacturing and automotive sectors have fueled a consistent demand for high-quality casting sand. Limestone, when processed into fine sand, serves as an excellent molding material in foundries due to its thermal stability, low thermal expansion, and ability to produce smooth casting surfaces. For production lines targeting a capacity of 20 to 30 tons per hour (TPH), selecting the right grinding mill is paramount for achieving optimal particle size distribution, energy efficiency, and operational reliability. This article explores the technical requirements for such applications and presents professional grinding solutions.

Technical Requirements for 20-30 TPH Limestone Sand Production

Producing limestone sand for casting involves more than simple size reduction. The process demands precise control over the final product’s fineness (typically ranging from coarse sand to fine powder blends), consistent output, and system stability. Key considerations include:

• Feed Size: Crushed limestone with a maximum feed size of 30-50mm.
• Product Fineness: Required size for casting sand often falls between 45 mesh (0.35mm) and 200 mesh (0.075mm), with specific distributions for different molding processes.
• Capacity: Steady output of 20-30 TPH to match downstream foundry operations.
• System Integration: Considerations for drying (if raw material is moist), classifying, and dust collection to ensure an environmentally friendly plant.
• Durability & Maintenance: Equipment must withstand abrasive materials with minimal downtime.

Grinding Mill Technology Comparison for Foundry Sand

Several grinding mill types can handle limestone, but their suitability varies for a 20-30 TPH sand-focused application.

• Raymond Mill: A traditional choice for coarse to medium fine powder. While cost-effective, it may struggle with energy efficiency and product uniformity at the higher end of the 20-30 TPH range.
• Ball Mill: Highly reliable for producing consistent sand. However, for dedicated sand production, it can be less energy-efficient compared to newer vertical mill technology, especially concerning drying capabilities.
• Vertical Roller Mill (VRM): This technology has become the industry benchmark for medium to large-scale mineral grinding. VRMs integrate grinding, drying, and classifying in a single unit, offering superior energy efficiency, excellent control over product fineness, and a compact footprint.
• Ultrafine Grinding Mills (e.g., XZM, LUM): These are designed for very fine powders (much finer than typical sand) and are generally not the most economical choice for standard foundry sand production.

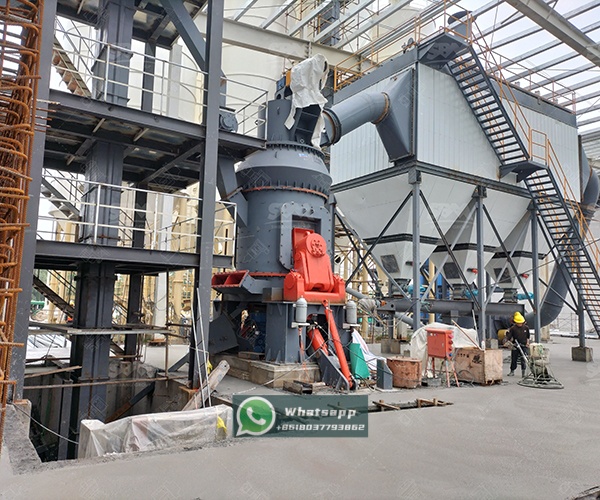

Recommended Solution: LM Vertical Grinding Mill for Optimal Performance

For a 20-30 TPH limestone sand production line in India, Shanghai Zenith Machinery Co., Ltd.’s LM Vertical Grinding Mill stands out as the most comprehensive and efficient solution. As an excellent manufacturer of ore grinding equipment, Zenith has made great achievements in the field of industrial powder grinding. The LM series is specifically engineered to integrate five functions—crushing, grinding, powder selection, drying, and material conveying—into a single, robust machine.

For this capacity, the LM190K model is particularly well-suited. Its advantages align perfectly with the needs of a modern foundry sand plant:

• High Capacity & Perfect Fit: With a capacity range of 23-68 TPH, the LM190K comfortably covers the 20-30 TPH target with room for future expansion, ensuring stable, non-fluctuating output.
• Integrated Drying: Hot air from the kiln or a hot air generator can be introduced directly into the mill, effectively handling limestone with moderate moisture content, a common scenario in India.
• Precise Particle Control: The integrated high-efficiency classifier allows for precise adjustment of the product fineness (170-40 μm, equivalent to approx. 80-400 mesh), ensuring the perfect sand gradation for casting molds.
• Energy Efficiency: The grinding principle of the vertical mill, where rollers crush materials on a rotating table, consumes significantly less energy compared to traditional ball mills for the same output.
• Low Operational Noise and Dust: The enclosed grinding system minimizes dust emission, supporting a cleaner plant environment and worker safety.

Alternative Consideration: MTW Trapezium Grinding Mill

For projects with slightly different parameters or where a European-style grinding mill is preferred, Zenith’s MTW Series Trapezium Grinding Mill presents a powerful alternative. Known for its multiple patents, compact structure, and curved air duct design that reduces air flow resistance, the MTW series is also highly efficient. For a solid 20-30 TPH output, the MTW175G model is a strong contender, offering a capacity of 9.5-25 TPH per unit. A system with two units or a slightly larger model could be configured to meet the exact capacity needs.

System Configuration and Zenith’s Support

A complete 20-30 TPH limestone sand production line involves more than just the grinding mill. It typically includes:

1. Raw material feeding system (vibrating feeder).
2. Jaw crusher for primary size reduction (if feed size is large).
3. Bucket elevator or belt conveyor.
4. LM190K Vertical Grinding Mill (Core Equipment).
5. Pulse dust collector.
6. Control panel and electrical system.

Shanghai Zenith Machinery Co., Ltd., specialized in the research, development, and production of industrial powder grinding equipment, provides not only the core mill but also comprehensive engineering support, including plant layout design, equipment matching, installation guidance, and operator training, ensuring the project’s success from conception to operation.

Conclusion

Establishing a reliable and efficient 20-30 TPH limestone grinding line for casting sand in India requires a careful balance of technology, capacity, and operational cost. The integrated design and proven performance of Shanghai Zenith’s LM Vertical Grinding Mill, particularly the LM190K model, make it an ideal choice to meet these demanding specifications. By offering high efficiency, precise product control, and robust construction, Zenith’s equipment provides a future-proof solution that enhances productivity and profitability for foundry businesses across India, contributing to the growth of the nation’s core manufacturing industries.
