In the industrial processing sector, grinding materials with high moisture content presents one of the most persistent and costly challenges. Materials such as clay, limestone with high water absorption, certain ores, and many agricultural products contain inherent or surface moisture that significantly impacts grinding efficiency, equipment performance, and final product quality. The presence of excess water leads to material agglomeration, clogging of grinding chambers, reduced throughput, and increased energy consumption. Overcoming these obstacles requires not only advanced processing techniques but also specialized grinding equipment designed to handle damp conditions effectively.

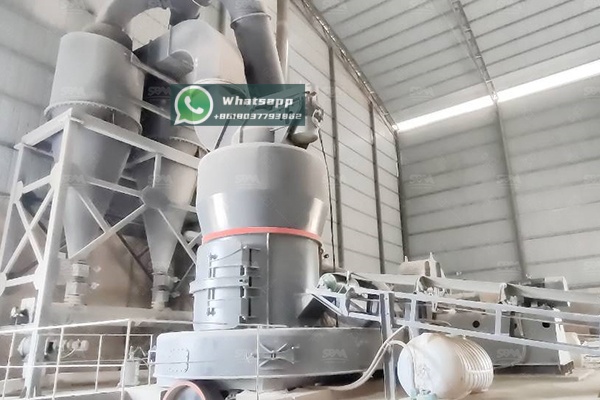

When processing materials with moisture content typically above 4-6%, several critical issues emerge that conventional grinding mills struggle to address:
Material Adhesion and Packing: Moist particles tend to stick to grinding media, chamber walls, and classifier components, creating a buildup that reduces effective grinding volume and eventually causes complete system blockage.
Reduced Grinding Efficiency: The presence of water creates a cushioning effect between particles and grinding elements, absorbing impact energy that would otherwise fracture the material. This results in longer residence times and higher specific energy consumption per ton of product.
Classification Difficulties: In systems with integrated air classifiers, moist fine particles tend to agglomerate, making accurate size separation nearly impossible. This leads to either unacceptably coarse product or recirculation of fines that further exacerbate moisture-related problems.
Product Handling and Storage Issues: Even if grinding is achieved, the resulting moist powder presents handling, storage, and transportation challenges, including caking, bridging in silos, and potential biological degradation.
The most effective approach to handling high moisture materials involves combining drying and grinding operations within a single system. This integrated methodology offers several distinct advantages over separate drying and grinding processes:
Energy Efficiency: Combined systems utilize the heat generated during grinding more effectively and require less total energy than separate drying and grinding operations.
Reduced Footprint: Integrated systems occupy significantly less space than separate drying and grinding lines, making them ideal for facilities with space constraints.
Process Simplification: Eliminating intermediate handling between drying and grinding reduces material loss, dust generation, and operational complexity.
Superior Product Quality: Simultaneous drying and grinding can produce more consistent particle size distribution and prevent overheating of dried material that might occur in separate processes.
Shanghai Zenith Machinery Co., Ltd., with its extensive experience in industrial powder grinding equipment, has developed specialized mills that effectively address the challenges of high moisture materials. Among their comprehensive product range, two solutions stand out for their exceptional performance in handling damp feedstocks.

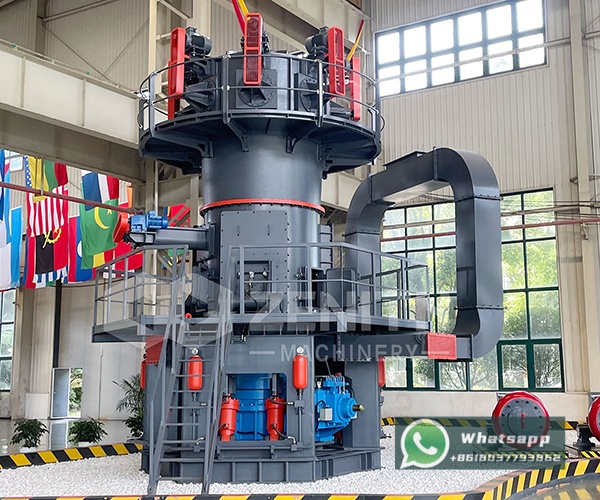

The LM Vertical Grinding Mill represents a technological breakthrough in processing challenging materials. Its unique design integrates five crucial functions—crushing, grinding, powder selection, drying, and material conveying—into a single compact unit. This integration makes it particularly well-suited for high moisture applications.
The mill’s drying capability is facilitated by the introduction of hot gas through the base, which travels upward through the grinding chamber, simultaneously drying and transporting the material. The vertical orientation ensures optimal heat transfer and efficient moisture removal throughout the grinding process.
Key technical parameters for the LM Vertical Grinding Mill series:
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
The LM series demonstrates exceptional versatility across various high-moisture applications, including mineral processing, coal grinding, and slag treatment. Its ability to handle feed moisture levels up to 15% (with integrated hot air system) makes it a preferred choice for numerous industries dealing with naturally moist materials or those requiring water addition during processing.
For applications requiring ultra-fine grinding of moist materials, Zenith’s LUM Ultrafine Vertical Mill offers an advanced solution. This mill builds upon the vertical grinding concept while incorporating specialized features for handling the particular challenges of fine grinding high moisture content materials.
The LUM mill’s intelligent control system continuously monitors and adjusts grinding parameters, including temperature, airflow, and grinding pressure, to maintain optimal conditions for both drying and size reduction. This ensures consistent product quality even with variations in feed moisture content.
Technical specifications for the LUM Ultrafine Vertical Mill:
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The LUM series excels in applications requiring precise control over final product moisture content and particle size distribution. Its advanced classification system ensures that even with moisture present, the separation efficiency remains high, producing consistent ultra-fine powders with minimal energy consumption.
Beyond equipment selection, successful processing of high moisture materials requires careful attention to operational parameters:
Temperature Control: Maintaining the optimal gas inlet temperature is critical—too low, and drying is insufficient; too high, and thermal degradation of the product or equipment may occur. Zenith’s mills incorporate sophisticated temperature monitoring and control systems to maintain this balance.
Feed Rate Optimization: The relationship between feed rate, moisture content, and grinding efficiency must be carefully calibrated. Zenith’s intelligent control systems automatically adjust feed rates based on real-time monitoring of power consumption and pressure differentials.
Airflow Management: Proper airflow ensures both adequate drying and efficient material transport through the system. The vertical design of Zenith’s mills creates natural airflow patterns that enhance both functions.
Preventive Maintenance: Regular inspection and maintenance of wear parts, particularly in high-moisture environments, ensures consistent performance and prevents unexpected downtime.
Zenith’s grinding solutions have demonstrated remarkable success across various industries dealing with high moisture materials:
Limestone Processing: A cement plant in Southeast Asia was struggling with limestone containing 8-12% moisture. Conventional grinding systems required pre-drying, adding significant cost and complexity. After installing an LM Vertical Grinding Mill, the plant achieved direct grinding of moist limestone with simultaneous drying, reducing energy consumption by 28% and increasing throughput by 15%.
Clay Processing for Ceramics: A ceramic manufacturer faced challenges with clay containing up to 15% moisture. The material’s plastic nature caused frequent clogging in their existing grinding system. Implementation of an LUM Ultrafine Vertical Mill enabled continuous processing with precise moisture control, improving product quality and reducing maintenance downtime by 70%.
Agricultural Product Processing: A company processing moist agricultural waste materials for animal feed supplements implemented Zenith’s grinding technology to replace their separate drying and grinding operations. The integrated system reduced their overall energy costs by 35% while improving product consistency.
As industries continue to seek more efficient and sustainable processing methods, the evolution of grinding technology for high moisture materials is advancing rapidly. Shanghai Zenith Machinery is at the forefront of these developments, focusing on:
Enhanced Energy Recovery: Developing systems that capture and reuse waste heat from the grinding process to pre-dry incoming materials.
Advanced Control Algorithms: Implementing AI-based control systems that can predict and adapt to variations in feed moisture content in real-time.
Modular Design: Creating customizable grinding systems that can be tailored to specific material characteristics and moisture levels.
Sustainable Operations: Focusing on reduced water consumption, lower carbon footprints, and integration with renewable energy sources.
The challenge of grinding high moisture materials requires specialized equipment and processing strategies. Shanghai Zenith Machinery’s LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill represent significant advancements in this field, offering integrated drying and grinding capabilities that deliver superior efficiency, reliability, and product quality. By selecting the appropriate technology and implementing optimal operational practices, processors can transform high moisture materials from a processing challenge into a competitive advantage.
As material characteristics continue to evolve and sustainability concerns grow, the importance of advanced grinding technology will only increase. With their commitment to innovation and proven track record in challenging applications, Zenith’s grinding solutions provide a pathway to more efficient, cost-effective, and environmentally responsible processing of high moisture materials across diverse industries.
