Phosphate rock, a naturally occurring mineral rich in phosphorus, has found increasing utility in the oil and gas drilling industry, particularly as an additive in drilling mud. In Nigeria, where the petroleum sector continues to expand, the demand for high-quality drilling fluids has surged. Drilling muds serve multiple critical functions: they cool and lubricate the drill bit, remove cuttings from the borehole, maintain hydrostatic pressure, and stabilize the wellbore. Phosphate rock, when ground to a fine powder (typically 200–400 mesh or finer), can be used as a weighting agent, a shale inhibitor, or a friction reducer, depending on its chemical composition and particle size distribution.
Nigeria’s phosphate rock reserves are primarily located in the Sokoto Basin, Ogun State, and other regions. However, raw phosphate rock must be processed to a specific fineness and purity to meet the stringent specifications required by drilling fluid formulations. This is where a reliable, efficient grinding mill becomes indispensable. For small to medium-scale operations or decentralized processing plants near drilling sites, a grinding mill with a capacity of 1–3 tons per hour (tph) offers the perfect balance between throughput, capital investment, and operational flexibility.
Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China, has accumulated rich experience in the field of ultra-fine powder grinding. With decades of innovation and a comprehensive product portfolio, Zenith provides tailor-made solutions for grinding phosphate rock into drilling mud-grade powder. This article will guide you through the technical considerations for selecting a suitable mill for 1–3 tph phosphate rock processing in Nigeria, and recommend specific Zenith models that excel in this application.
Before delving into equipment selection, it is essential to understand the product specifications demanded by drilling mud engineers. Typical requirements include:
Phosphate rock is a soft to medium-hard material (Mohs hardness 3–5) with a relatively low abrasion index. This makes it suitable for grinding with roller mills, Raymond mills, or ball mills. However, for the desired fineness and capacity range, the most cost-effective and energy-efficient options are medium-speed mills and Raymond-style mills. Zenith’s MTM Medium-Speed Grinding Mill and Raymond Mill (YGM series) are specifically designed to handle materials like phosphate rock with minimal wear and high powder yield.
Shanghai Zenith Machinery Co., Ltd. is specialized in the research, development, and production of industrial powder grinding equipment and related devices. Our main products include MTW Trapezium Grinding Mill, Ball Mill, MTM Medium-Speed Grinding Mill, Raymond Mill, LM Vertical Grinding Mill, LUM Ultrafine Vertical Mill, XZM Ultrafine Grinding Mill, and Hammer Mill. For phosphate rock grinding in the 1–3 tph range, we recommend two proven models: the YGM9517 Raymond Mill and the MTM100 Medium-Speed Grinding Mill. Both can comfortably achieve the required fineness and capacity while offering robust performance in the Nigerian climate and site conditions.

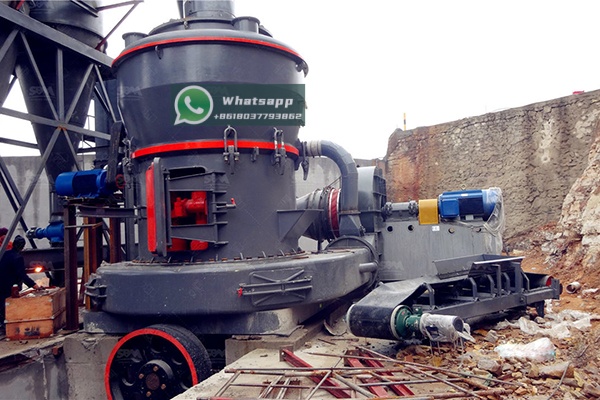

The YGM9517 is a classic Raymond mill design modernized by Zenith. It features 4 grinding rollers, a main shaft speed of 130 rpm, and a blower that provides sufficient air volume for classification. The mill is ideal for producing phosphate rock powder with a fineness of 1.6–0.045 mm (10–325 mesh). For drilling mud applications, we typically set the classifier to produce 200–325 mesh powder, corresponding to a capacity of 2.1–4.5 t/h. With a maximum feed size of 25 mm, it can directly accept crushed phosphate rock from a primary jaw crusher. The YGM9517 is particularly favored for its low maintenance costs, simple operation, and proven reliability in West African conditions.
| Parameter | Value |
|---|---|
| Roller Quantity (pcs) | 4 |
| Max. Feed Size (mm) | 25 |
| Discharging Size (mm) | 1.6 – 0.045 |
| Capacity (t/h) | 2.1 – 8 |
| Main Motor Power (kW) | 37 |
| Blower Motor Power (kW) | 30 |
| Overall Dimensions (L×W×H, m) | 8.0 × 6.5 × 5.5 |
For a target capacity of 1–3 tph, the YGM9517 operates comfortably in the lower part of its capacity range, ensuring product quality while leaving room for occasional throughput increases. Its compact footprint makes it suitable for installation in remote Nigerian drilling sites where space is limited.
The MTM100 is a modern alternative that incorporates advanced grinding ring and roller designs, a high-efficiency classifier, and a lubricating system that reduces downtime. This mill is built to produce fine powder with a D97 of 0.038–0.125 mm (120–400 mesh). With a capacity range of 3–8 t/h, the MTM100 can easily deliver 2–3 t/h of phosphate rock powder at a fineness suitable for drilling mud. It is equipped with 4 grinding rings and rollers, and its main motor power is 37 kW. The MTM100 also features an automatic grease lubrication system, which is a significant advantage in dusty environments.
| Parameter | Value |
|---|---|
| Ring Roll Number (pcs) | 4 |
| Max. Feed Size (mm) | 25 |
| Output (t/h) | 3 – 8 |
| Main Unit Motor Power (kW) | 37 |
| Classifier Motor Power (kW) | 5.5 |
| Final Fineness (mm) | 0.125 – 0.038 |
Both mills are manufactured using high-chrome wear parts and are backed by Zenith’s global spare parts network. For Nigerian customers, Zenith offers on-site commissioning and training services to ensure smooth operation.
When setting up a grinding plant for phosphate rock destined for drilling mud, several factors must be addressed:
Nigeria’s power supply can be unreliable in some regions. Therefore, Zenith recommends configuring the mill with a diesel generator or exploring solar-assisted power solutions for remote locations. Both the YGM9517 and MTM100 are designed to operate efficiently with a power supply of 380V/50Hz, which is standard in Nigeria.
While both mills can meet the capacity and fineness requirements, the choice depends on specific preferences:
For a drilling mud plant requiring a steady 2.5 tph of powder at 200 mesh, either mill is a solid choice. We often recommend the MTM100 for new projects due to its advanced features, while the YGM9517 remains a favorite for its reliability and ease of repair.

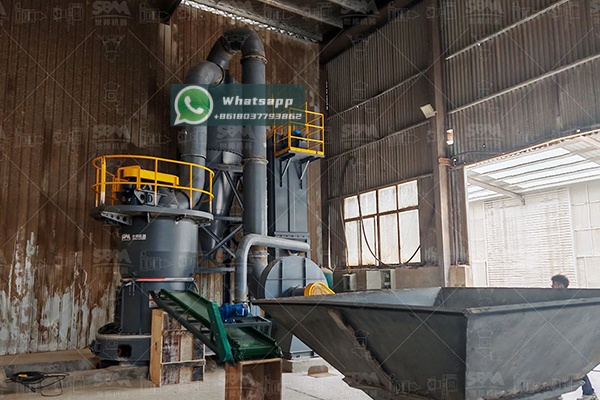

Zenith has supplied grinding equipment to numerous phosphate rock processing plants in Morocco, Senegal, and Nigeria. In one recent project in Ogun State, a customer installed a YGM9517 Raymond Mill to produce 200-mesh phosphate rock powder for supplying local drilling mud companies. The mill operates 12 hours per day, producing 2.8 tph reliably, with wear part replacement intervals exceeding 8 months. The customer reported that the final powder met all density and viscosity requirements for water-based mud formulations.
Another client in Port Harcourt selected an MTM100 mill for its offshore support base. The mill’s compact design allowed it to fit within an existing warehouse, and the automatic grease system reduced daily maintenance labor by 70%. After six months of operation, the customer ordered a second unit for an additional drilling fluid mixing plant.
If you are looking for a phosphate rock grinding mill for drilling mud production in Nigeria with a capacity of 1–3 tph, Shanghai Zenith Machinery Co., Ltd. offers two excellent solutions: the YGM9517 Raymond Mill and the MTM100 Medium-Speed Grinding Mill. Both machines are purpose-built for fine grinding of non-metallic minerals, deliver consistent product quality, and are supported by Zenith’s global service network.
We invite you to contact our sales team to discuss your specific raw material characteristics, site conditions, and target product specifications. Zenith will provide a complete grinding solution including feeders, crushers, bucket elevators, mills, dust collectors, and control panels. With our advanced manufacturing technology and deep expertise in the field of ultra-fine powder grinding, we are confident that we can help you achieve high profitability and operational excellence.
For more information on our complete range of grinding mills, please visit our website or request a quotation directly. Let us partner with you to build a successful phosphate rock grinding plant in Nigeria.
