In the mineral processing and powder grinding industry, selecting the appropriate milling equipment for materials with high moisture content presents significant technical challenges. High moisture materials, typically containing more than 8-10% moisture, require specialized grinding systems that can effectively handle both size reduction and moisture removal simultaneously. This article provides an in-depth technical comparison between Raymond Mills and Vertical Mills specifically for processing high moisture materials, with particular focus on their operational principles, drying capabilities, and overall efficiency.
High moisture materials such as clay, limestone with high water content, certain ores, and industrial by-products present unique processing challenges. These materials tend to clog conventional grinding systems, reduce throughput efficiency, and can lead to increased energy consumption. The primary concerns when processing high moisture materials include:

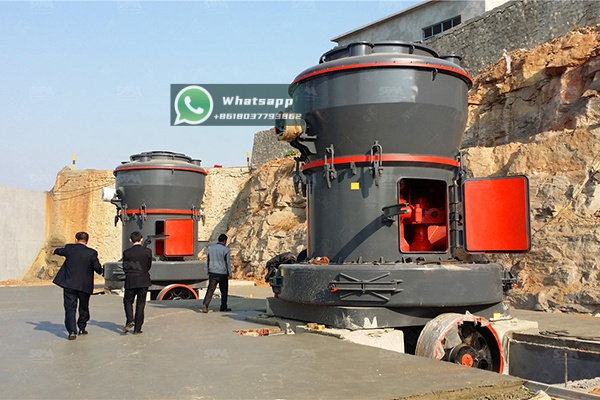

Raymond Mill, also known as pendulum roller mill, operates on the principle of spring-loaded rollers grinding against a rotating grinding ring. The material is fed centrally between the grinding ring and rollers, where centrifugal force causes the material to move outward and become ground between the grinding elements. For high moisture materials, traditional Raymond Mills face limitations due to their limited drying capabilities and susceptibility to material buildup.
Vertical Mills, particularly those designed by industry leaders like Shanghai Zenith Machinery, represent a significant advancement in high moisture material processing. These mills integrate grinding, drying, classification, and material transport in a single compact unit. The fundamental working principle involves material being fed onto a rotating grinding table where rollers apply pressure, while hot gas is simultaneously introduced to dry the material during grinding.
As an excellent manufacturer of ore grinding equipment with significant achievements in ultra-fine powder grinding, Shanghai Zenith Machinery offers specialized solutions for high moisture material processing. Our extensive research, development, and production experience in industrial powder grinding equipment has resulted in several optimized mill designs specifically addressing the challenges of high moisture materials.
For operations requiring efficient processing of high moisture materials, we strongly recommend our LM Vertical Grinding Mill series. This mill integrates five critical functions—crushing, grinding, powder selection, drying, and material conveying—into a single, compact machine. The integrated drying system makes it particularly suitable for materials with significant moisture content.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) | Max Moisture Handling Capacity |
|---|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 | Up to 15% |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 | Up to 15% |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 | Up to 15% |
For operations requiring ultra-fine grinding of high moisture materials, our LUM Ultrafine Vertical Mill represents the pinnacle of grinding technology. This mill integrates grinding, drying, classifying, and transportation while occupying minimal space. The intelligent control system and advanced material handling capabilities make it ideal for challenging high moisture applications where precise particle size control is required.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) | Max Moisture Handling Capacity |
|---|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 | Up to 12% |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 | Up to 12% |
| LUM1836 | 355-400 | 2.3-15 | 5-30 | Up to 12% |
When processing high moisture materials, energy consumption becomes a critical factor. Vertical Mills typically demonstrate 20-30% lower energy consumption compared to Raymond Mills for similar applications. This efficiency advantage stems from the integrated drying process and more efficient grinding mechanism. The table below illustrates typical energy consumption patterns:
| Moisture Content | Raymond Mill (with separate dryer) | Vertical Mill (integrated drying) | Energy Savings |
|---|---|---|---|
| 8% | 48-52 | 38-42 | 18-22% |
| 12% | 58-65 | 42-48 | 25-30% |
| 15% | 70-80 | 48-55 | 30-35% |
Vertical Mills generally produce more consistent particle size distribution with narrower ranges, which is particularly beneficial for high moisture materials where agglomeration can affect classification efficiency. The integrated classification systems in modern Vertical Mills, such as those in Shanghai Zenith’s LM and LUM series, provide superior control over final product fineness.

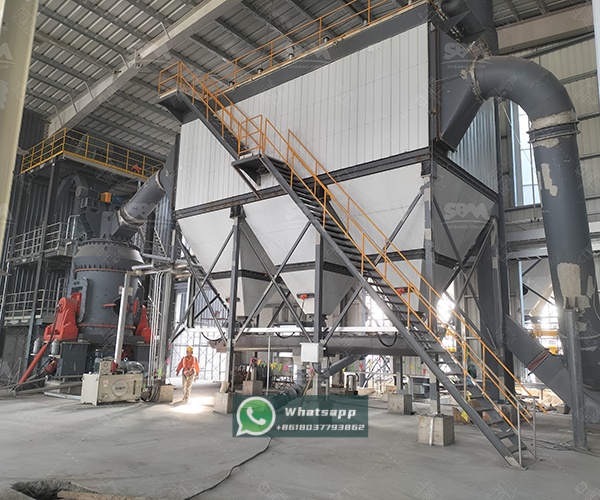

Raymond Mills traditionally have simpler maintenance requirements with readily accessible components. However, when processing high moisture materials, the increased wear and potential for corrosion may offset these advantages. Vertical Mills, while potentially requiring more specialized maintenance expertise, often demonstrate longer component life and reduced downtime when properly configured for high moisture applications.
The selection between Raymond Mill and Vertical Mill for high moisture materials depends on multiple factors including material characteristics, moisture content, production requirements, capital constraints, and operational priorities. While Raymond Mills offer proven reliability and lower initial investment, Vertical Mills provide significant advantages in energy efficiency, integrated drying capability, and overall performance for high moisture applications.
Shanghai Zenith Machinery’s LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill represent advanced solutions specifically engineered to address the challenges of high moisture material processing. With integrated drying systems, superior energy efficiency, and advanced control capabilities, these mills provide optimal performance for demanding applications where moisture content would compromise the efficiency of traditional grinding systems.
For operations regularly processing materials with moisture content exceeding 8%, the technical and economic advantages of Vertical Mills typically justify the higher initial investment through reduced operating costs, improved product quality, and enhanced operational reliability. As moisture content increases, the performance gap between these technologies widens, making Vertical Mills the clear choice for the most challenging high moisture grinding applications.
