In today’s industrial landscape, operational efficiency extends beyond mere production output. It encompasses energy consumption, environmental impact, and the very spatial footprint of the machinery itself. For operations in mining, cement production, and power generation, the grinding process is a core activity, traditionally dominated by large, space-consuming equipment. At Shanghai Zenith Machinery, we have pioneered vertical mill technology that delivers superior grinding performance while significantly reducing the physical and environmental footprint of your operations.

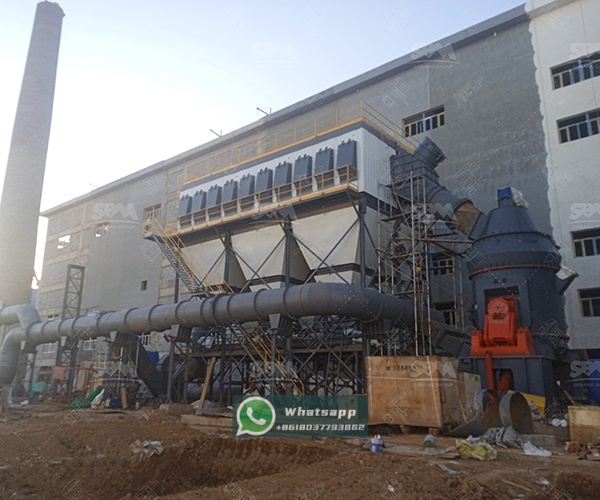

The conventional ball mill, while reliable, requires a substantial amount of floor space. Its horizontal configuration, along with ancillary equipment like feeders and conveyors, can dominate a plant layout. In contrast, our vertical mill solutions are engineered with a compact, integrated design. The core principle is simple yet revolutionary: by stacking the grinding, drying, classifying, and conveying functions vertically, we drastically reduce the machine’s base area.
This smaller footprint translates directly into tangible benefits. New plant construction can be more compact, saving on building costs. Existing facilities can retrofit a vertical mill without major structural changes, often freeing up valuable space for other processes or storage. The streamlined layout also simplifies material flow, reducing the need for long conveyor systems and associated transfer points, which in turn minimizes dust emissions and maintenance points.
The advantages of our vertical mills go far beyond a smaller physical presence. The integrated design is the key to unparalleled operational efficiency.
At Shanghai Zenith Machinery, we offer a range of vertical mills tailored to specific material and output requirements. Two of our flagship models exemplify our commitment to compact, high-performance grinding technology.

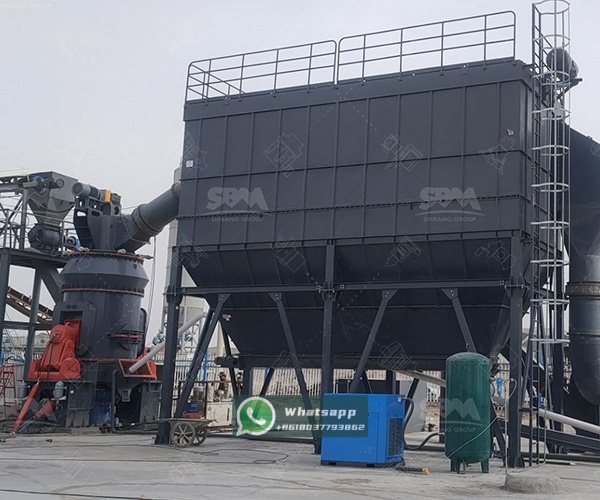

The LM Vertical Grinding Mill is our cornerstone product for mineral processing. Its robust design and versatility make it ideal for grinding cement raw meal, clinker, slag, and coal. The integrated functions ensure a stable and efficient process, making it a top choice for large-scale industrial applications where reliability and output are paramount.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
For applications demanding ultra-fine powders, our LUM Ultrafine Vertical Mill stands apart. This mill represents the cutting edge of grinding technology, engineered to produce powders with a high content of end-fines. It is particularly suited for processing non-metallic minerals like calcite, marble, and limestone to superfine levels. The LUM series features advanced classifying technology and intelligent control systems for precise particle size distribution and easier operation.
| Model | Main Machine Power (kW) | Capacity (t/h) | Size Distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The transition to vertical milling is not merely a technical upgrade; it is a strategic business decision. The smaller footprint leads to lower capital and operational costs. The integrated, energy-efficient design slashes power bills. The environmentally friendly operation future-proofs your plant against tightening regulations. By choosing a Zenith Vertical Mill, you are investing in a solution that optimizes your entire production ecosystem.
As a leading manufacturer in China with great achievements in ultra-fine powder grinding, Shanghai Zenith Machinery is committed to providing industrial powder grinding equipment that meets the challenges of the modern world. Our vertical mill solutions are a testament to this commitment, offering a path to greater productivity, sustainability, and profitability—all from a smaller, smarter footprint.
Contact us today to discover how our LM and LUM Vertical Mills can revolutionize your grinding process.
