The Engineering Of Our European Mill’s Powder Separator

The Engineering Of Our European Mill’s Powder Separator

In the realm of industrial powder processing, the efficiency and precision of powder separation technology play a pivotal role in determining the final product quality and overall operational economics. At Shanghai Zenith Machinery Co., Ltd., we have dedicated years of research and development to perfecting this critical component, particularly within our advanced European-style grinding mills. This article delves into the sophisticated engineering behind our powder separator systems and highlights how they integrate seamlessly with our premier grinding equipment to deliver unparalleled performance in ultra-fine powder production.

1. The Critical Role of Powder Separation in Grinding Circuits

The powder separator, often referred to as a classifier, is the brain of any modern grinding mill. Its primary function is to segregate fine, correctly-sized particles from coarse ones that require further grinding. This process ensures that the final product meets stringent fineness specifications while preventing over-grinding, which wastes energy and can degrade product quality. In our European mill designs, the separator is not an auxiliary component but an integral part of a highly optimized system.

Our separators utilize a dynamic, high-efficiency design featuring a vertically mounted rotor with multiple blades. As the air-powder mixture enters the separator, the rotor’s rotational speed creates a powerful vortex. Fine particles, influenced by the drag force of the air, pass through the rotor blades and are collected as the final product. Coarse particles, subjected to greater centrifugal force, are thrown to the outer wall of the separator, fall back into the grinding chamber, and are reground. This continuous, internal circulation is key to achieving high yields and consistent particle size distributions.

2. Advanced Engineering Features of Zenith’s Separators

The engineering excellence of our powder separators is manifested in several key features:

• Variable Rotor Speed: The rotational speed of the separator rotor is electronically controlled and can be adjusted in real-time. This allows operators to precisely control the cut point (D97) of the product, enabling the production of powders from coarse (e.g., 200 mesh) to ultra-fine (e.g., 2500 mesh) without stopping the mill.
• Optimized Blade Design: The geometry, angle, and number of rotor blades are the result of extensive computational fluid dynamics (CFD) simulations. This design maximizes classification efficiency by creating a stable and sharp cut curve, minimizing the amount of misplaced fines in the coarse fraction and vice versa.
• Wear-Resistant Materials: Critical components, especially the rotor blades and the guide vanes, are lined with high-chromium alloy or ceramic materials. This significantly enhances the service life of the separator when processing abrasive materials, reducing maintenance downtime and operational costs.
• Intelligent Control System: Our separators are fully integrated with the mill’s PLC system. Sensors monitor key parameters like motor load, temperature, and pressure, allowing for automated adjustments to maintain optimal performance and provide early warnings for potential issues.

3. Synergy with Zenith’s Premier Grinding Mills

The true potential of a high-performance separator is only realized when it is perfectly matched with an efficient grinding mill. At Zenith, we design our systems holistically. Two of our flagship products that exemplify this perfect synergy are the LUM Ultrafine Vertical Mill and the MTW European Trapezium Grinding Mill.

3.1. The LUM Ultrafine Vertical Mill: A Paradigm of Integrated Grinding and Classification

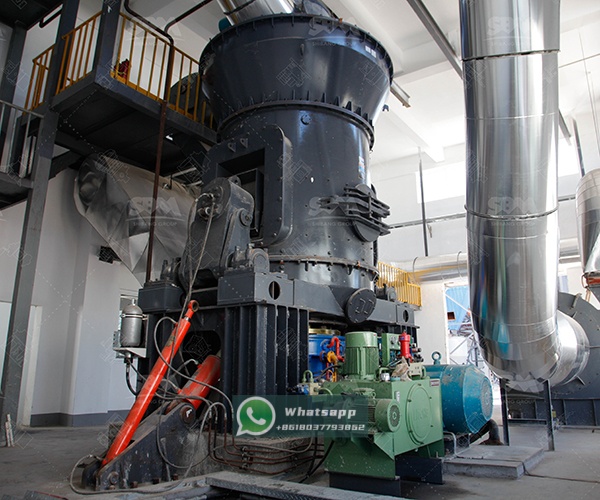

For applications demanding the highest levels of fineness, the LUM Ultrafine Vertical Mill is the ultimate solution. It represents the pinnacle of our engineering, where the powder separator is not just an add-on but the core of the grinding mechanism. The mill integrates grinding, drying, classification, and conveying into a single, compact unit.

The separator in the LUM series is specifically designed for ultra-fine classification. Its high-precision rotor and optimized airflow pattern ensure that even at fineness levels up to 2500 mesh, the classification efficiency remains exceptionally high. This prevents energy waste and ensures a steep particle size distribution in the final product. We highly recommend the LUM series for industries such as high-purity electronics, advanced ceramics, and specialty chemicals.

3.2. The MTW European Trapezium Grinding Mill: Reliability and Efficiency for Medium to Fine Grinding

For a wide range of non-metallic minerals like limestone, calcite, and dolomite, the MTW European Trapezium Grinding Mill offers an unbeatable combination of reliability, high capacity, and energy efficiency. Its bevel gear overall transmission and curved surface blade design are proprietary technologies that contribute to its smooth operation and long lifespan.

The powder separator in the MTW mill is a robust, high-capacity unit designed for continuous, heavy-duty operation. It features a simplified mechanical structure that enhances stability and reduces the need for frequent maintenance. The ease of adjusting the fineness makes it an ideal choice for production lines that need to switch between different product specifications regularly.

4. Operational Benefits and Economic Impact

The advanced engineering of our powder separator systems translates directly into significant operational and economic benefits for our clients:

• Superior Product Quality: High classification efficiency ensures a narrow particle size distribution, which is critical for the performance of powders in applications like paints, plastics, and construction materials.
• Enhanced Energy Efficiency: By efficiently returning coarse material for regrinding and quickly extracting finished product, the system minimizes energy consumption per ton of output, a major factor in operational costs.
• Increased System Stability: The integrated design and intelligent control reduce operational volatility, leading to smoother production runs, higher availability, and reduced operator intervention.
• Reduced Wear and Maintenance: The use of wear-resistant materials and the prevention of over-grinding contribute to lower consumption of grinding media and liner plates, extending maintenance cycles.

5. Conclusion

The powder separator is a testament to the detailed, system-level engineering that defines Shanghai Zenith’s approach to industrial grinding. It is far more than a simple screening device; it is an intelligent, high-precision component that dictates the efficiency, quality, and economy of the entire milling process. By choosing a Zenith grinding mill, such as the LUM Ultrafine Vertical Mill for extreme fineness or the MTW European Trapezium Mill for high-capacity general grinding, you are investing in a system where every component, especially the powder separator, is engineered for excellence. Our commitment to research and development ensures that our technology continues to set the benchmark for performance and reliability in the global powder processing industry.
