Zeolites are microporous aluminosilicate minerals that have found extensive applications across industries due to their unique ion-exchange, adsorption, and catalytic properties. In glass manufacturing, zeolites serve as a valuable alternative to traditional raw materials such as soda ash, limestone, and feldspar. They act as a fluxing agent, lowering the melting temperature of the glass batch, reducing energy consumption, and improving the homogeneity of the final product. Additionally, zeolites can function as clarifying agents, helping to remove bubbles and impurities during the melting process. The United States, being one of the largest glass producers globally, has seen a growing interest in incorporating zeolite powders into container glass, flat glass, and fiberglass formulations. However, to achieve consistent quality and optimal performance, the zeolite must be ground to a precise particle size distribution—typically between 40 and 200 microns—with minimal contamination and high throughput. This article explores the technical requirements for zeolite grinding in the US glass industry and presents two high-performance grinding mills from Shanghai Zenith Machinery Co., Ltd., specifically designed to deliver 20–30 tons per hour (tph) of fine zeolite powder.
When selecting a grinding mill for zeolite processing, several factors must be carefully evaluated. First, the feed size of the raw zeolite often ranges from 10 mm to 50 mm, depending on the quarrying and primary crushing stages. The mill must be capable of handling such input without frequent blockages. Second, the target fineness for glass-grade zeolite is usually between 0.045 mm (325 mesh) and 0.2 mm (80 mesh), with a narrow particle size distribution. Over-grinding leads to excessive fines that can cause dust issues and increase energy costs, while under-grinding leaves large particles that fail to react properly in the glass furnace. Third, the moisture content of zeolite (typically 5–15% as-mined) must be controlled or accommodated by the mill’s drying capability or auxiliary drying system. Finally, the mill’s wear resistance is critical due to the abrasive nature of zeolite, which contains silica and alumina. In the United States, environmental regulations also demand low noise, minimal dust emission, and energy-efficient operation. Shanghai Zenith Machinery Co., Ltd., an excellent manufacturer of ore grinding equipment in China, has extensive experience in solving these challenges. Their product line includes the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill, both of which are available in models that cover the 20–30 tph capacity range with excellent fineness control.
The MTW Trapezium Grinding Mill is a state-of-the-art mill that incorporates multiple patented technologies. Its compact structure, long service life, and eco-friendly design make it ideal for medium-to-large-scale zeolite grinding operations. For a target capacity of 20–30 tph, the MTW215G model stands out as the perfect choice. This mill accepts feed sizes up to 50 mm and can produce a final product as fine as 0.038 mm (400 mesh) at a maximum capacity of 45 tph. Under typical zeolite grinding conditions (with a hardness of 3–4 on Mohs scale and a bulk density of 1.2–1.6 t/m³), the MTW215G easily achieves 25–30 tph of material with a fineness of 80–200 mesh. The trapezoid-shaped grinding rollers and ring provide a larger grinding surface area, reducing vibration and improving efficiency. The built-in classifier ensures a uniform particle size distribution, which is critical for consistent glass batch behavior. Additionally, the mill’s negative-pressure system minimizes dust leakage, complying with US OSHA and EPA standards. The following table summarizes the key technical parameters of the MTW215G for zeolite grinding.
| Parameter | Value |
|---|---|
| Model | MTW215G |
| Max. Feed Size (mm) | <50 |
| Final Product Size (mm) | 1.6 – 0.038 |
| Capacity (t/h) | 15 – 45 |
| Main Motor Power (kW) | 280 |
| Fan Motor Power (kW) | 315 |
| Classifier Speed (r/min) | Adjustable |
| Grinding Roller Quantity (pcs) | 5 |
| Weight (without motor, t) | ~56 |

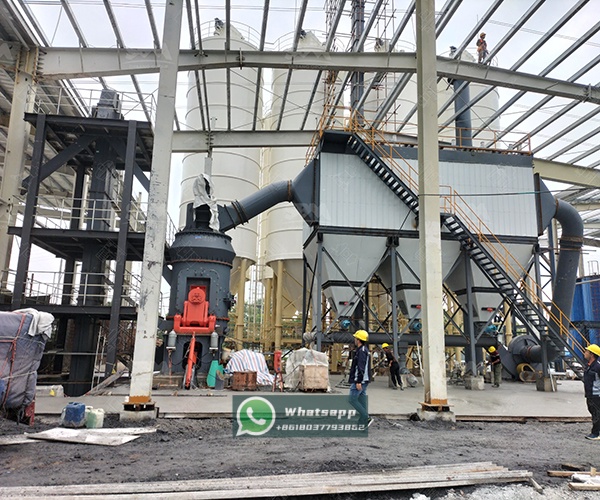

For customers who prefer a vertical mill design with integrated crushing, grinding, drying, and classifying functions, the LM190K Vertical Grinding Mill is an excellent alternative. This mill is widely used in the minerals industry for processing non-metallic ores like zeolite. With a plate diameter of 1900 mm, the LM190K offers a capacity range of 23–68 t/h, comfortably covering the 20–30 tph requirement. Its vertical roller design allows for efficient drying of moist zeolite (up to 15% moisture) using hot air from the system, eliminating the need for a separate dryer. The mill’s built-in classifier produces a final product with fineness of 170–40 microns (equivalent to 80–400 mesh). The LM series also features a small footprint, making it suitable for plants with limited space. The main motor power of 500 kW provides ample torque for grinding abrasive materials while maintaining low specific energy consumption. Below are the key parameters of the LM190K.
| Parameter | Value |
|---|---|
| Model | LM190K |
| Plate Diameter (mm) | 1900 |
| Capacity (t/h) | 23 – 68 |
| Output Fineness (μm) | 170 – 40 |
| Max. Feed Size (mm) | <45 |
| Main Motor Power (kW) | 500 |
| Drying Capability | Yes (hot air) |
| Weight (t) | ~78 |
Both the MTW215G and the LM190K are capable of delivering the required 20–30 tph throughput for zeolite grinding. The choice depends on specific plant conditions. If floor space is limited and you need a single machine that can also dry incoming wet zeolite, the LM190K vertical mill is the preferred option. It also offers lower noise levels and a more compact layout. On the other hand, if you already have a pre-drying system or your zeolite feed has low moisture content, the MTW215G trapezium mill provides a lower initial investment and easier maintenance due to its simpler gearbox and roller assembly. Additionally, the MTW mill’s ability to produce a narrower particle size distribution (typical D90 variation < ±5%) makes it ideal for glass batches that require strict quality control. In the United States, many glass manufacturers have successfully adopted Zenith’s MTW series for grinding feldspar, nepheline syenite, and now zeolite. For example, a container glass plant in Ohio recently upgraded to an MTW215G and reported a 15% increase in melting efficiency due to the consistent particle size of the zeolite flux.
Shanghai Zenith Machinery Co., Ltd. provides comprehensive services for US customers, including site planning, foundation design, installation supervision, and commissioning. With a network of local representatives and spare parts warehouses in key industrial hubs, downtime is minimized. The company also offers training programs for operators and maintenance crews, ensuring that the mill operates at peak efficiency. For zeolite grinding applications, Zenith recommends using high-chrome grinding rollers and liners to extend service life. Both the MTW215G and LM190K are designed for easy access to wear parts, reducing maintenance time. Furthermore, the intelligent control system (PLC with remote monitoring) allows operators to adjust the classifier speed, feed rate, and air flow in real time, ensuring consistent product quality even when raw material properties vary. This level of automation is particularly valuable in the US market, where labor costs are high and consistent production is essential.
The demand for zeolite in American glass production is rising as manufacturers seek to reduce energy costs and improve product quality. Achieving a grinding capacity of 20–30 tph with the required fineness is no longer a challenge thanks to advanced mill technology from Shanghai Zenith Machinery Co., Ltd. The MTW215G Trapezium Grinding Mill and the LM190K Vertical Grinding Mill both provide reliable, energy-efficient solutions that meet or exceed the expectations of the US glass industry. By choosing either of these mills, glass producers can ensure a steady supply of high-quality zeolite powder, leading to better glass clarity, lower melting temperatures, and enhanced profitability. For more detailed engineering data or a customized quotation for your specific zeolite characteristics, please contact the Shanghai Zenith sales team or your local distributor. With decades of expertise and a commitment to innovation, Zenith remains the preferred partner for grinding solutions in the United States and around the world.
While the MTW and LM series are the top choices for the 20–30 tph capacity range, Zenith also offers other mills suitable for smaller or larger scales. For instance, the MTM160 Medium-Speed Mill (9–22 t/h) can serve lower-capacity lines, while the LUM Ultrafine Vertical Mill is ideal for producing superfine zeolite (5–30 microns) for specialty glass applications. The Hammer Mill (HM4015-132) can be used for pre-crushing zeolite lumps before feeding into the main mill. Whatever your requirement, Zenith has a proven solution. Visit the official website or contact our engineers for a complete system design tailored to your US glass manufacturing plant.
