In the Middle East, where sustainable water management is becoming a strategic priority, the application of advanced mineral processing technologies has attracted significant attention. Among these, zeolite grinding has emerged as a crucial process due to zeolite’s excellent ion-exchange capacity, adsorption performance, and catalytic properties, making it an ideal material for water treatment. Achieving fine and uniform zeolite powder is essential for maximizing its benefits, especially in industrial and municipal water purification systems. In this context, specialized grinding equipment designed to deliver targeted throughput in the range of 20–30 tons per hour (TPH) plays a decisive role.
Shanghai Zenith Machinery Co., Ltd.—a renowned manufacturer of industrial grinding mills in China—offers tailored milling solutions for zeolite processing applications in the UAE water treatment industry. With decades of experience in the field of ultra-fine powder grinding, Zenith’s equipment combines reliability, energy efficiency, and precision control, providing operators with an optimized system for high-quality zeolite production.
Zeolite is a naturally occurring or synthetic aluminosilicate mineral with a highly porous structure. It can selectively adsorb cations and molecules, which makes it extraordinarily valuable for a variety of environmental and industrial processes—especially water purification and desalination. In the UAE, where fresh water resources are limited and desalination is a major source of potable water, zeolite plays a key role in improving treatment efficiency and reducing energy costs.
The processing of raw zeolite ore into precise particle sizes is crucial for optimizing its surface area and functional performance. Finer zeolite powders enhance adsorption rates and filter efficiency while ensuring better reactivity in catalytic and ion-exchange processes. This directly translates into improved system performance, reduced maintenance, and higher-quality water output.
To meet the specific production requirements of a 20–30 TPH zeolite processing facility, a grinding system must combine high capacity, fine control of particle size distribution, low power consumption, and minimal environmental impact. Two models from Shanghai Zenith stand out for this scale of operation: the MTW Trapezium Grinding Mill and the LM Vertical Grinding Mill. Both have been successfully deployed in mineral processing, cement, and environmental sectors worldwide.

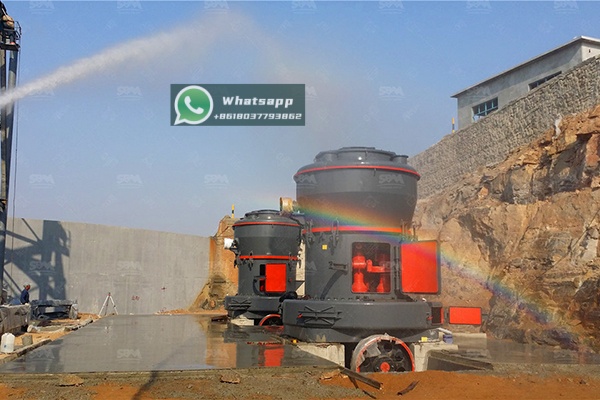

The MTW Trapezium Grinding Mill is an advanced European-style grinder designed for high-efficiency powder production. It utilizes a bevel gear overall drive, internal thin oil lubrication system, and arc air channel, ensuring stable performance and reduced maintenance. For zeolite grinding, the MTW series is capable of producing fine powders between 1.6 to 0.045 mm with outstanding uniformity.
Depending on plant requirements, the MTW175G or MTW215G models are ideal for 20–30 TPH output ranges, offering consistent throughput and high operational safety. The following table shows key technical parameters.
| Model | Max Feed Size (mm) | Final Size (mm) | Capacity (t/h) | Main Motor (kW) | Fan Motor (kW) |
|---|---|---|---|---|---|
| MTW175G | <40 | 1.6–0.045 | 9.5–25 | 160 | 200 |
| MTW215G | <50 | 1.6–0.045 | 15–45 | 280 | 315 |
For zeolite grinding at 20–30 TPH, these models can be configured in multi-unit systems with dust collection and classification modules, ensuring compliance with stringent UAE environmental regulations. Their efficient airflow control promotes clean operation and consistent particle size distribution, making them highly suitable for producing fine zeolites for water filtration applications.

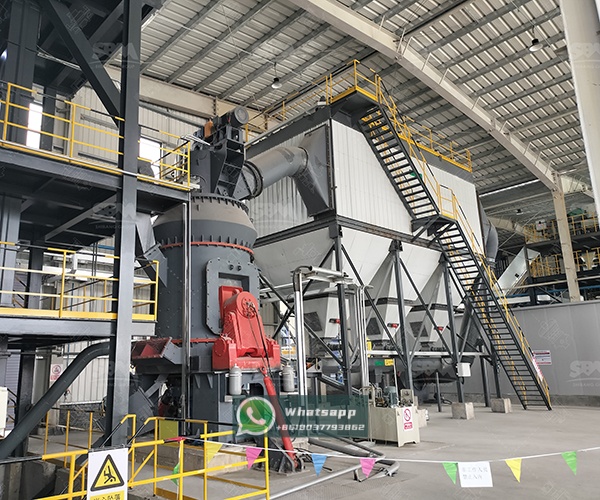

The LM Vertical Grinding Mill is an integrated solution that combines crushing, drying, grinding, classification, and material conveying in a single system. For zeolite producers seeking sustainable, space-saving, and low-cost operation, the LM series offers remarkable advantages. It operates efficiently with low vibration and incorporates advanced automatic control to ensure product consistency even in large-scale continuous production lines.
For a target capacity of 20–30 TPH, the LM130K or LM220X-GX models can be selected based on the required fineness and moisture content of the zeolite feed material.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Max Feed Size (mm) | Main Motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10–28 | 170–40 | <38 | 200 |
| LM220X-GX | 2200 | 15–30 | 325–600 mesh | – | 560 |
In the UAE’s hot and arid environment, the LM Vertical Mill’s integration of drying functions is particularly advantageous. It can process zeolite directly from a damp feed source using hot air flow within the milling chamber, eliminating the need for additional pre-drying equipment, saving both energy and space.
Zenith’s zeolite grinding solutions provide a combination of technological sophistication, operational sustainability, and adaptability to the UAE’s industrial conditions. Key advantages include:
By applying these design principles, Shanghai Zenith Machinery Co., Ltd. ensures that industrial clients in the UAE receive a robust solution for producing high-grade zeolite powders with stable performance over long operational cycles.
In the UAE, treated water used for industrial, agricultural, and domestic purposes must meet rigorous quality standards. Zeolite-based filtration materials have been increasingly adopted by water treatment plants to remove ammonia, heavy metals, and organic contaminants. When produced to the required fineness, zeolite improves adsorption efficiency, shelf life, and chemical stability of water filters.
Zenith’s grinding systems allow UAE operators to tailor zeolite powder specifications—such as particle size and moisture level—to match different water treatment configurations, including ion-exchange systems, membrane pretreatment units, and biofiltration reactors. The adaptability of Zenith mills also facilitates the use of both natural and synthetic zeolites, offering flexibility for local sourcing and cost optimization.
Shanghai Zenith Machinery Co., Ltd. offers complete turnkey grinding solutions, covering mechanical design, electrical control systems, and after-sales service. The company provides site installation, operator training, and routine maintenance plans to ensure seamless integration with existing plant infrastructures in the UAE.
Spare parts availability and remote diagnostic services further guarantee consistent performance of grinding operations, reducing downtime and optimizing productivity throughout the equipment’s lifespan.
With growing emphasis on resource-efficient water treatment solutions in the UAE, the demand for high-performance zeolite powders is expected to rise steadily. Implementing an advanced zeolite grinding mill with capacities of 20–30 TPH from Shanghai Zenith Machinery Co., Ltd. not only ensures high-quality output but also aligns with sustainability and cost-efficiency objectives.
Whether employing the MTW Trapezium Grinding Mill for precision performance or the LM Vertical Grinding Mill for integrated operations, Zenith provides clients with proven technologies to enhance environmental outcomes and operational efficiencies across the water treatment sector.
For engineers and decision-makers seeking to modernize their zeolite processing lines, Zenith’s advanced equipment provides the combination of technical strength, reliability, and professional support that defines long-term industrial success in the UAE’s demanding water industry.
