The proper installation and commissioning of grinding mills are critical factors in achieving optimal performance, longevity, and operational efficiency in mineral processing plants. A meticulous approach from foundation preparation to final performance testing ensures that the equipment meets its designed specifications and delivers consistent, high-quality output. This guide outlines the essential technical steps and considerations for successfully installing and commissioning industrial grinding equipment.

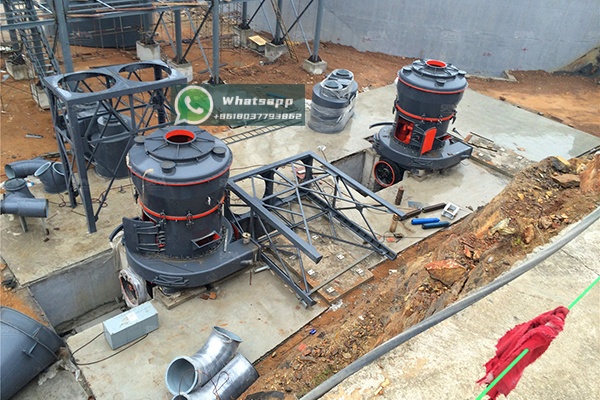

Before any physical work begins, a comprehensive review of all engineering drawings, including foundation plans, general arrangement drawings, and load data, must be conducted. The foundation is the bedrock of mill stability; it must be designed to withstand not only the static weight of the mill but also the dynamic forces generated during operation.
Key considerations include:
Upon arrival, all components must be thoroughly inspected for damage incurred during transit. Compare the received items against the packing list and purchase order. Check for any visible cracks, deformations, or corrosion. Critical components like the main bearing saddle, girth gear, and pinion shaft should be meticulously examined.
The installation should follow a logical sequence to ensure alignment and stability.
The main bearing housings are the first major components to be positioned. They must be set level and aligned with each other within very tight tolerances (typically within 0.1 mm/m). The foundation plates are then grouted in place, ensuring full contact and support.
For larger mills, the shell is delivered in sections and must be assembled on-site. This process involves:

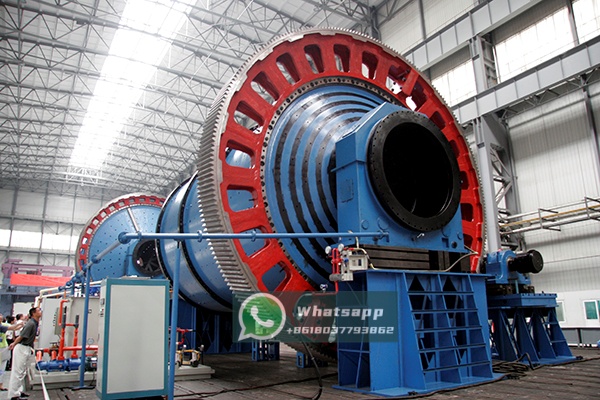

This is a precision task. The girth gear is heated uniformly to allow for expansion and then fitted onto the mill shell. After cooling, it must be checked for radial and axial run-out against manufacturer specifications. The pinion shaft is then aligned with the girth gear to ensure proper meshing and backlash.
The main motor, reducers, and couplings are installed and aligned. The high-pressure and low-pressure lubrication systems for the main bearing and girth gear are piped, flushed, and filled with the correct grade of oil.
The mill’s motor and control systems are wired and integrated with the plant’s Distributed Control System (DCS) or Programmable Logic Controller (PLC). This includes installing variable frequency drives (VFDs) if applicable, protection relays, and all instrumentation for temperature, pressure, and vibration monitoring.
Commissioning is a phased process that verifies the equipment is ready for service.
Start the mill without any grinding media or feed. The objectives are:
After a successful no-load run, the mill is charged with a specified amount of grinding media and a small amount of ore. The load is gradually increased while monitoring power draw, bearing temperature, and lubricant pressure. The final performance test evaluates the mill’s capacity, product fineness, and specific energy consumption (kWh/t) against the guaranteed performance figures.
The success of any milling circuit begins with selecting the appropriate technology for the ore characteristics and product requirements. For operations demanding high capacity and fine to ultra-fine grinding, vertical roller mills have become a preferred technology due to their efficiency and compact footprint.

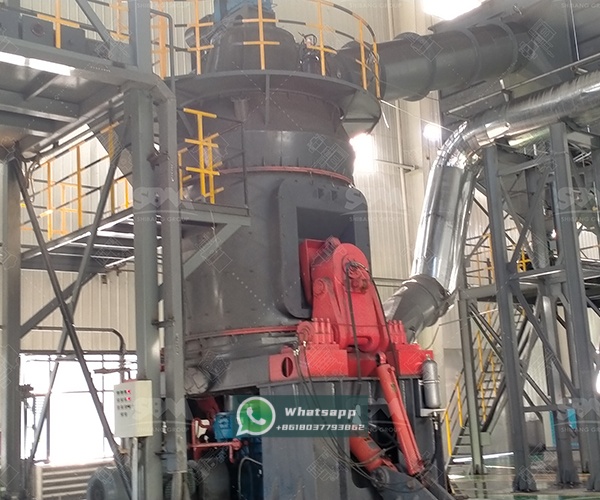

Shanghai Zenith Machinery Co., Ltd., a leader in powder grinding technology, offers advanced solutions for these challenges. A prime example is the LM Vertical Grinding Mill, which integrates crushing, grinding, powder selection, drying, and conveying into a single unit. This design offers significant advantages in space savings and energy efficiency.
For ultra-fine powder production, Zenith’s LUM Ultrafine Vertical Mill is an excellent choice. It is engineered to produce products with a high content of end-fines and features intelligent control systems for stable operation and easier maintenance.
| Model | Plate diameter (mm) | Capacity (t/h) | Output fineness (μm) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | <38 | 200 |
| LM190K | 1900 | 23-68 | 170-40 | <45 | 500 |
| LM280K | 2800 | 50-170 | 170-45 | <50 | 1250 |
The installation and commissioning of a grinding mill is a complex but manageable process when executed with careful planning, precision, and adherence to manufacturer guidelines. A well-installed mill, paired with the right technology for the application—such as the efficient vertical mills from Shanghai Zenith—forms the foundation for a reliable and profitable processing plant. Proper training of operational and maintenance personnel is the final, critical step to ensure long-term, trouble-free performance.
