The Canadian oil and gas industry, particularly in regions like Alberta and Saskatchewan, relies heavily on high-performance drilling fluids (mud) to ensure efficient and safe drilling operations. A critical, yet often specialized, component in formulating weighted drilling mud is finely ground cement clinker. This material serves as a high-density, cost-effective weighting agent and fluid loss control additive. Processing cement clinker to the precise particle size distribution required for mud systems—typically in the range of 75 to 150 microns—demands robust, efficient, and reliable grinding technology. For operations targeting a production capacity of 5 to 10 tons per hour (TPH), selecting the appropriate grinding mill is paramount for profitability and consistency.
Ground cement clinker offers several advantages in drilling fluid formulations. Its high specific gravity (approximately 3.15 g/cm³) effectively increases mud density to control subsurface pressures. Unlike barite, another common weighting agent, cement clinker particles can have inherent cementitious properties that can contribute to wellbore stabilization in specific applications. The key to unlocking these benefits lies in the grinding process. The clinker must be reduced to a fine, consistent powder to prevent sedimentation in the mud, ensure smooth pumpability, and provide effective fluid loss control. An inconsistent or coarse grind can lead to equipment abrasion, poor mud performance, and ultimately, increased operational costs.
Grinding cement clinker for drilling mud in the Canadian context presents unique challenges. The material is highly abrasive, which accelerates wear on grinding components. The target capacity of 5-10 TPH requires a mill that balances output with energy efficiency, a significant concern given operational costs. Furthermore, the often remote and variable climate conditions demand equipment with high reliability, ease of maintenance, and the ability to produce a consistent product fineness despite potential fluctuations in feed material. The grinding system must be compact, environmentally compliant with minimal dust emission, and capable of integrated drying if the clinker feedstock contains residual moisture.
For over two decades, Shanghai Zenith Machinery Co., Ltd. has established itself as an excellent manufacturer of ore and industrial grinding equipment, achieving remarkable success in the field of ultra-fine and precision powder processing. Specializing in the research, development, and production of industrial powder grinding mills, Zenith offers a comprehensive portfolio of machines designed to meet the toughest material processing challenges, including the abrasive nature of cement clinker.
After analyzing the requirements for grinding cement clinker for drilling mud—specifically the need for handling abrasive materials, achieving a 5-10 TPH output, and producing a controlled particle size—two of Zenith’s product lines stand out as particularly suitable.
Primary Recommendation: MTM Medium-Speed Grinding Mill

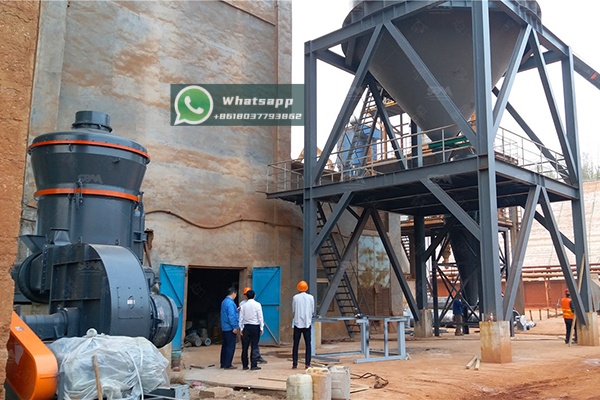

The MTM Medium-Speed Grinding Mill is an ideal workhorse for this application. It represents a technological evolution from traditional Raymond mills, offering a more upgraded structure, higher efficiency, and significant energy savings. Its medium-speed operation and optimized grinding curve make it exceptionally effective for moderately hard and abrasive materials like clinker. For a 5-10 TPH production line, the MTM130 model is perfectly matched.
| Model | Ring Roll Number (pcs) | Max. Feed Size (mm) | Output (t/h) | Main Unit Motor Power (kW) |
|---|---|---|---|---|
| MTM130 | 5 | <30 | 6-11 | 75 |
As the table shows, the MTM130’s output range of 6-11 TPH comfortably encompasses the target capacity. Its robust construction ensures durability against abrasive wear, while its efficient design keeps power consumption in check, reducing the operational cost per ton of ground clinker.
Advanced Alternative: LM Vertical Grinding Mill
For operations prioritizing a smaller footprint, superior drying capability (if needed), and even higher grinding efficiency, the LM Vertical Grinding Mill is a premier choice. This mill integrates five functions—crushing, grinding, powder selection, drying, and conveying—into a single, compact unit. It is renowned for its eco-friendly operation and lower noise level. The LM130K model from the Vertical Mineral Mill series is an excellent fit for this application.
| Model | Plate Diameter (mm) | Capacity (t/h) | Output Fineness (μm) | Main Motor (kW) |
|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | 200 |
The LM130K offers a capacity starting at 10 TPH, which is at the upper end of the requirement, providing headroom for future expansion. Its vertical roller design provides direct grinding pressure on the material bed, leading to high grinding efficiency and lower wear rates compared to some horizontal ball mill systems, making it a robust and low-maintenance solution for continuous clinker processing.
Implementing a 5-10 TPH clinker grinding line involves more than just the mill. It requires a cohesive system including feeding, grinding, classification, dust collection, and packaging. Shanghai Zenith Machinery can provide not only the core grinding equipment but also support with system design and integration of auxiliary components. Their expertise ensures that the entire production line works in harmony to deliver the specified product consistently and reliably, even in demanding Canadian operational environments.
Selecting the right cement clinker grinding mill is a critical decision for drilling mud suppliers and oilfield service companies in Canada. A solution that offers reliability, energy efficiency, precise particle size control, and low maintenance is essential for a competitive edge. Shanghai Zenith Machinery’s MTM Medium-Speed Grinding Mill (specifically the MTM130 model) and the LM Vertical Grinding Mill (LM130K model) present two compelling, professionally engineered options tailored for a 5-10 TPH production target. By leveraging Zenith’s proven technology and industrial grinding expertise, Canadian operators can establish a efficient and profitable clinker processing line to support the vital energy sector.
