In the realm of industrial powder processing, the grinding chamber represents the very heart of any milling system. It is within this precisely engineered space that raw materials are transformed into valuable fine and ultrafine powders. At Shanghai Zenith Machinery Co., Ltd., our dedication to research and development has led to groundbreaking innovations in grinding chamber design, particularly in our ultrafine grinding solutions. This article delves into the sophisticated engineering principles that define the performance and efficiency of our ultrafine mill’s grinding chamber.
The fundamental goal in designing an ultrafine grinding chamber is to create an environment where multiple processes—grinding, classification, and drying—can occur simultaneously and efficiently. Unlike traditional mills where these are separate stages, our design philosophy centers on integration. This holistic approach minimizes energy loss, reduces the system’s footprint, and ensures a more consistent final product.
A key challenge in ultrafine grinding is managing the increased surface energy of fine particles, which leads to agglomeration and reduced grinding efficiency. Our grinding chambers are engineered to counteract this through optimized airflow dynamics and mechanical action, ensuring particles remain dispersed and are subjected to the most effective grinding forces.
The grinding chamber is not a single component but a complex assembly where each part plays a critical role.
At the core of the chamber lies the grinding mechanism. In our LUM Ultrafine Vertical Mill and XZM Ultrafine Grinding Mill, this typically consists of multiple rollers that rotate against a stationary grinding ring. The rollers are hydraulically loaded, applying consistent pressure to the material bed. This design ensures that the grinding force is applied gradually and evenly, preventing shock loads and reducing wear on the components. The geometry of the rollers and the ring is calculated to maximize the contact area and shear forces, which are essential for efficient ultrafine comminution.
Perhaps the most significant advancement in modern mill design is the integration of a high-efficiency classifier directly above the grinding zone. In the past, external classifiers led to recirculation of coarse material, increasing energy consumption and system complexity. Our internal, dynamically adjustable classifiers allow for real-time control over product fineness. As ground material is carried upward by the airflow, the classifier rotor rejects oversized particles, sending them back to the grinding zone for further processing. This closed-loop system ensures that only particles meeting the target fineness exit the chamber.

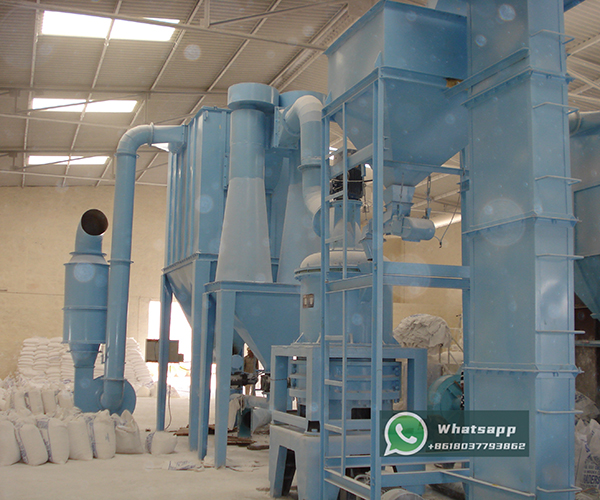

The grinding chamber is a dynamic system where airflow is the lifeblood. A high-pressure fan draws air through the chamber, serving multiple purposes: it transports the ground material, removes heat generated by the grinding process (a form of cooling), and can be used for drying if the mill is processing moist feed. The air ducts and chamber geometry are designed to create a stable, laminar flow that minimizes turbulence and ensures an even distribution of material across the grinding zone.
The extreme forces and abrasive nature of many processed materials demand exceptional durability from the grinding chamber’s components. We employ advanced material science to combat wear. Critical components like the grinding rollers and ring are often made from high-chromium alloy steel or ceramic composites, which offer superior hardness and impact resistance. In some applications, these parts are hard-faced with specialized alloys to extend their service life significantly. This focus on material longevity directly translates to lower operating costs and reduced downtime for maintenance.

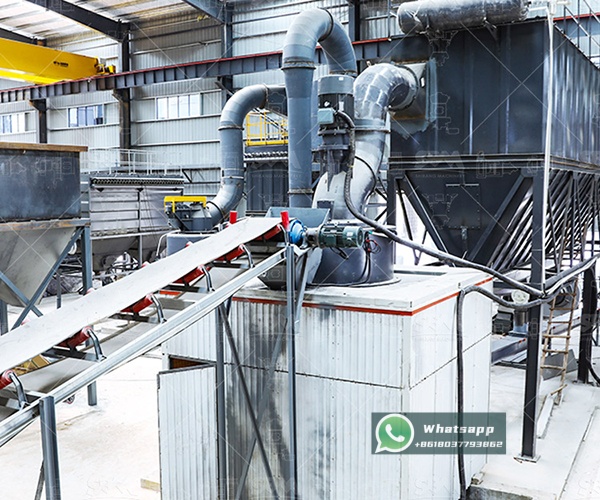

Our LUM Ultrafine Vertical Mill exemplifies the pinnacle of grinding chamber engineering. It is designed as a fully integrated system where grinding, drying, classification, and transportation are seamlessly combined. The grinding chamber features a unique roller and ring design that generates higher pressure and more shear forces with less energy input. Its intelligent control system automatically adjusts grinding pressure and classifier speed to maintain optimal performance, even with variations in feed material.
The technical parameters of the LUM series demonstrate its capability:
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
This mill is particularly recommended for industries requiring extremely fine powders with a narrow particle size distribution, such as high-grade paints, advanced ceramics, and specialty chemicals.
For applications demanding superfine powder production from soft to medium-hard materials, our XZM Ultrafine Grinding Mill is an ideal choice. Its grinding chamber is engineered to achieve an impressive output fineness ranging from 325 to 2500 mesh. The chamber’s design ensures a stable material bed and efficient particle-on-particle attrition, which is crucial for achieving such fine sizes without excessive energy consumption.
| Model | Working diameter (mm) | Max feed size (mm) | Final size (mesh) | Output (kg/h) | Main motor power (kW) |
|---|---|---|---|---|---|
| XZM221 | Φ800 | ≤20 | 325-2500 | 500-4500 | 75 |
| XZM268 | Φ1680 | ≤20 | 325-2500 | 5000-25000 | 315 |
The XZM mill’s robustness and versatility make it a cornerstone in industries like cosmetics, pharmaceuticals, and food processing, where purity and fineness are paramount.
The grinding chamber of an ultrafine mill is a masterpiece of mechanical, aerodynamic, and control engineering. It is a system where every detail, from the alloy of a grinding roller to the algorithm controlling the classifier, is meticulously crafted to achieve a single goal: the efficient production of high-quality ultrafine powder. At Shanghai Zenith Machinery, our continuous investment in R&D ensures that our grinding chambers remain at the forefront of technology, providing our clients with reliable, economical, and high-performance solutions for their most demanding powder processing challenges. By choosing a Zenith ultrafine mill, you are not just purchasing a machine; you are investing in a system built upon a deep understanding of the science of grinding.
