Coal slurry fuel represents a significant advancement in energy technology, offering improved combustion efficiency and reduced environmental impact compared to traditional pulverized coal. The production of high-quality coal slurry fuel requires grinding coal to superfine levels, typically in the range of 10-45 microns, to create stable suspensions with enhanced combustion characteristics. This technical article explores the critical role of vertical mill technology in achieving these precise particle size distributions for optimal slurry fuel production.
Traditional coal grinding methods, including ball mills and Raymond mills, have served the industry for decades. However, these conventional approaches often fall short when it comes to achieving the ultra-fine particle sizes required for modern slurry fuel applications. The limitations include higher energy consumption, inconsistent particle size distribution, and difficulties in controlling the grinding process to meet precise specifications.

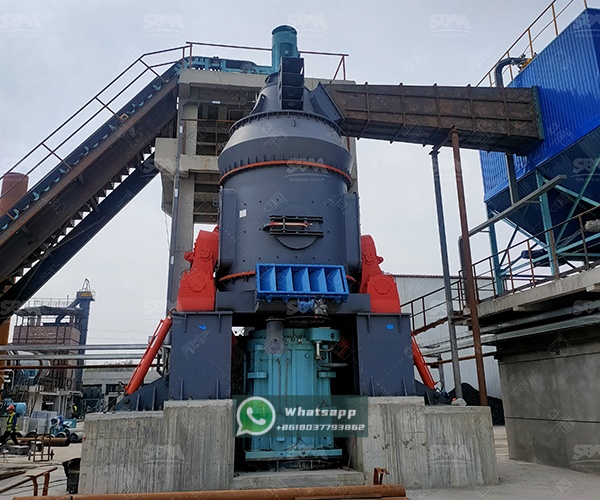

Vertical mill technology has emerged as the superior solution for coal grinding applications, particularly for slurry fuel production. The integrated design of vertical mills combines multiple processing stages—crushing, grinding, classification, and drying—into a single, compact system. This integrated approach not only reduces the footprint of grinding operations but also enhances process control and energy efficiency.
Modern vertical mills incorporate five essential functions within a single machine: crushing, grinding, powder selection, drying, and material conveying. This integrated design eliminates the need for multiple pieces of equipment, reducing both capital investment and operational complexity. The compact arrangement also minimizes heat loss and improves thermal efficiency during the drying process, which is particularly important when processing coal with varying moisture content.
The advanced classification systems in vertical mills enable precise control over the final product fineness. For coal slurry fuel applications, maintaining a narrow particle size distribution is crucial for achieving stable suspensions and optimal combustion performance. Vertical mills can consistently produce coal powder with fineness ranging from 170 to 40 microns, with specialized models capable of even finer outputs.
Vertical mills demonstrate significantly higher energy efficiency compared to traditional grinding systems. The direct grinding principle, where materials are ground between the rollers and the grinding table, reduces energy consumption by 30-50% compared to ball mills of similar capacity. Additionally, the enclosed system design minimizes dust emissions, contributing to cleaner and safer operating environments.
Shanghai Zenith Machinery Co., Ltd. has established itself as a leading manufacturer of ore grinding equipment in China, with remarkable achievements in the field of ultra-fine powder grinding. Specializing in the research, development, and production of industrial powder grinding equipment, Zenith offers comprehensive solutions tailored to the specific requirements of coal slurry fuel production.
Among Zenith’s extensive product portfolio, the LM Vertical Grinding Mill series stands out as particularly suitable for coal grinding applications. These mills are specifically engineered to handle the abrasive nature of coal while maintaining consistent performance and minimal wear. The vertical design allows for efficient drying of coal with moisture content up to 15%, making them ideal for processing various coal types under different climatic conditions.
| Model | Plate diameter (mm) | Capacity (t/h) | Max feed size (mm) | Main motor (kW) |
|---|---|---|---|---|
| LM130M | 1300 | 10-17 | <38 | 185 |
| LM220M | 2200 | 35-50 | <50 | 500 |
| LM280M | 2800 | 60-90 | <50 | 900 |
For applications requiring exceptionally fine coal powder, Zenith’s LUM Ultrafine Vertical Mill represents the cutting edge of grinding technology. This advanced mill integrates grinding, drying, classifying, and transportation functions while occupying minimal space. The intelligent control system enables precise adjustment of operating parameters to achieve the desired particle size distribution for high-performance slurry fuels.
| Model | Main machine power (kW) | Capacity (t/h) | Size distribution D97 (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2.0-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
The quality of coal slurry fuel is heavily dependent on the particle size distribution of the ground coal. An optimal distribution for slurry fuel typically includes a majority of particles in the 10-45 micron range, with minimal oversize material that could lead to sedimentation. Vertical mills equipped with high-efficiency classifiers can achieve this precise distribution consistently, ensuring stable slurry formulations with reduced additive requirements.
Coal moisture content significantly impacts both the grinding process and the final slurry quality. Vertical mills address this challenge through integrated hot gas systems that simultaneously dry and grind the coal. This approach not only improves grinding efficiency but also ensures consistent moisture content in the final product, which is critical for maintaining slurry stability and combustion performance.
The modular design of Zenith’s vertical mills allows for operational flexibility across different production scales. From pilot-scale testing to full-scale commercial production, these mills can be configured to meet specific throughput requirements while maintaining consistent product quality. This scalability is particularly valuable for slurry fuel producers who may need to adjust production volumes based on market demand.
The superior energy efficiency of vertical mills translates directly to reduced operating costs. With energy consumption typically 30-50% lower than traditional grinding systems, the savings in electricity costs can be substantial, especially in continuous operation scenarios common in slurry fuel production facilities. Additionally, the reduced wear part consumption and lower maintenance requirements contribute to lower overall operating expenses.
Modern vertical mills are designed with environmental considerations at the forefront. The enclosed grinding system prevents dust emissions, while the efficient classification reduces the need for downstream dust collection equipment. Furthermore, the ability to precisely control particle size distribution enables producers to optimize slurry formulations for cleaner combustion with reduced emissions of NOx, SOx, and particulate matter.
A recent installation of Zenith’s LM220M Vertical Coal Mill at a major slurry fuel production facility demonstrated significant improvements in both product quality and operational efficiency. The mill achieved a consistent output of 40 t/h of coal powder with 90% of particles below 45 microns. The integrated drying system successfully handled coal with 12% moisture content, producing a final product with consistent 2% moisture ideal for slurry formulation.
The facility reported a 35% reduction in specific energy consumption compared to their previous ball mill system, along with a 50% reduction in maintenance downtime. The improved particle size distribution also enabled a 15% reduction in chemical additives required for slurry stabilization, further enhancing the economic viability of the operation.
The evolution of vertical mill technology continues to address the emerging needs of the coal slurry fuel industry. Future developments are expected to focus on enhanced digitalization, with advanced process control systems utilizing artificial intelligence to optimize grinding parameters in real-time. Additionally, research into new wear-resistant materials will further extend maintenance intervals and reduce operating costs.
As environmental regulations become increasingly stringent, the ability of vertical mills to produce precisely controlled coal powders will become even more valuable. The technology enables producers to meet strict emission standards while maintaining economic competitiveness in the energy market.
Vertical mill technology represents the state-of-the-art solution for grinding coal to superfine levels required for high-quality slurry fuel production. The integrated design, energy efficiency, and precise control capabilities of modern vertical mills make them ideally suited for this demanding application. Shanghai Zenith Machinery’s LM Vertical Grinding Mill and LUM Ultrafine Vertical Mill series offer proven performance and reliability for coal slurry fuel producers seeking to optimize their operations.
As the energy industry continues to evolve toward cleaner and more efficient fuel alternatives, advanced grinding technologies will play an increasingly important role in enabling the widespread adoption of coal slurry fuels. With continuous innovation and commitment to quality, Zenith remains at the forefront of this technological advancement, providing cutting-edge solutions for the global energy sector.
